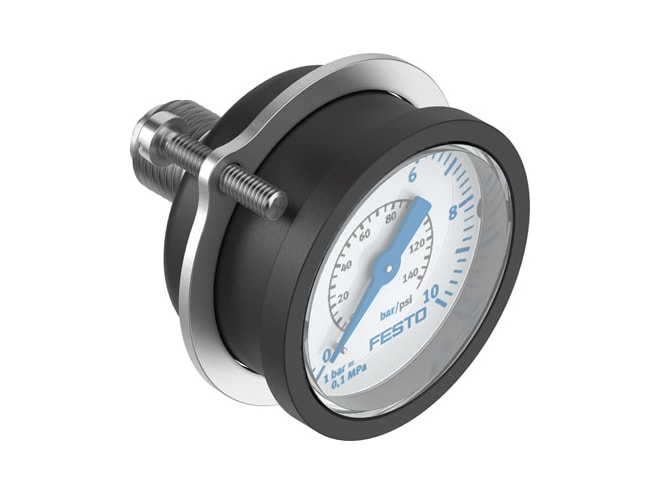

Festo FMA Series Flanged Pressure Gauge

Bourdon tube pressure gauge with front panel or in-line mounting and a measurement range of up to 16bar / 230psi.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0 to 16bar (0 to 232psi) operating pressure
  • -4 to 140°F (-20 to 60°C) temperature range
  • G1/4 pneumatic connection
  • Operating mediums:
    • All sizes: inert gases and neutral fluids
    • Size 63 only: liquid media and gaseous media
    • Note: not to be used with acetylene or oxygen
  • Material in contact with the medium: brass
  • IP43 protection class
  • VDMA24364-B1/B2-L conformity
  • Made with RoHS-compliant materials
  • Meets ATEX zones 1, 2, 21, and 22 requirements

The Festo FMA Series Flanged Pressure Gauge measures and indicates pressure in pneumatic control systems. It features a G1/4 pneumatic connection and a three-point mounting ring with a steel clamping bracket for panel mounting. Pressure values are displayed on the face of the gauge with maximum pressure values ranging from 0.25 to 16bar (3.6 to 232psi.) The FMA series gauge may be used with inert gases or neutral fluids, and the 63mm size can also be used with gaseous or liquid media.

Applications

  • Food and packaging
  • Life sciences
  • Process automation
