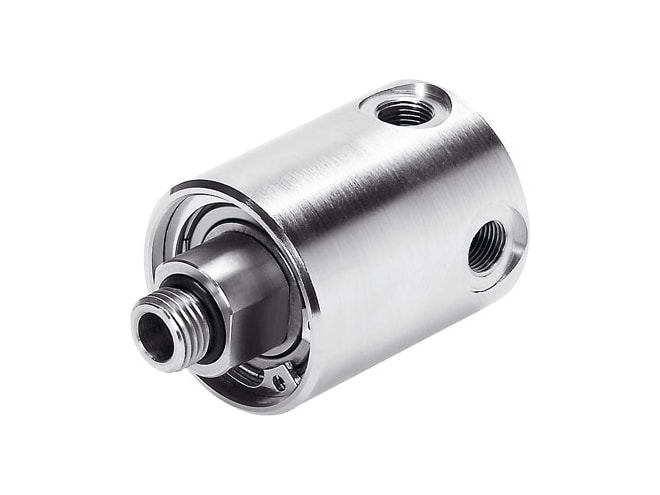

Festo GF Series Rotary Distributor

Single or multiple rotary distributor with 2 or 4 axial and radial outlets.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Brass and hardened steel
  • Single or multiple rotary distributor
    • 2 or 4 axial and radial outlets
  • G1/2, G1/4, G1/8, and G3/8 thread sizes
  • Operating medium: compressed air, vacuum
  • RoHS-compliant materials

The Festo GF Series Rotary Distributor transmits media from stationary sources to rotating machine parts. It features a compact, sturdy design with a double ball bearing that protects the media supply against mechanical loads. Two versions of the GF series are available. Single rotary through-feed with 1 input and 4 outputs, or multiple rotary through-feeds with 2 separate inputs and outputs. Versions with multiple rotary through-feeds provide a flexible way of supplying and returning the medium through the radial and axial inputs and outputs.

Applications

  • Food and packaging
