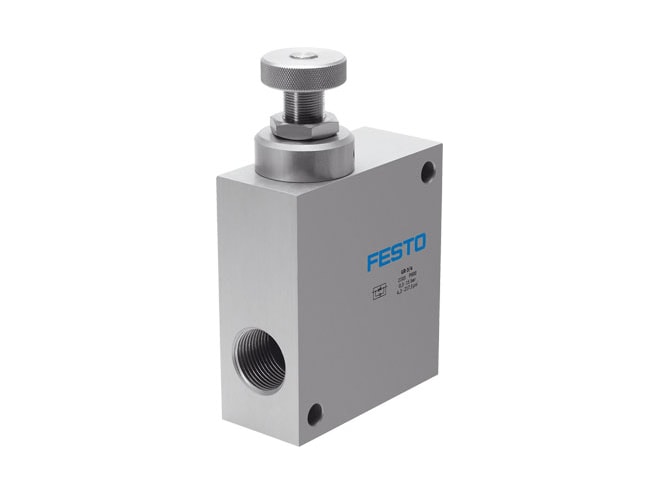

Festo GR-3/4 One-way Flow Control Valve
Stop/flow control with 1 valve, non-return function, Male thread G3/4 pneumatic connection, and mounting via Front panel mounting or with through-hole. View other configurations.
$596.98
Part Numbers
- GR-3/4
- 2103
Highlights...
Overview
Features
- One-way flow control function valve function
- Knurled screw adjustment component
- Front panel mounting type of mounting
- With through-hole type of mounting
- 3300L2 standard nominal flow rate in flow control direction
- 4800L2 standard nominal flow rate in blocked direction
- Wrought aluminium alloy material housing
- Optional mounting position
- 991453 symbol
- Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
- Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- -10GC media temperature
- 60GC media temperature
- 938G product weight
- RoHS-compliant note on materials
- 0.3BAR to 15BAR operating pressure
- -10GC ambient temperature to 60GC ambient temperature
- Pneumatic connection g3/4 , port 1
- Pneumatic connection g3/4 , port 2
