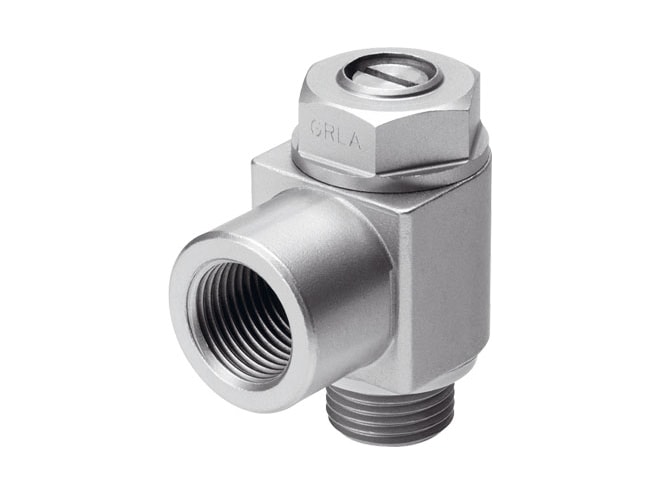

Festo GRLA-3/4-B One-way Flow Control Valve

$134.83
Part Numbers
  • GRLA-3/4-B
  • 151180
Highlights...

Features

  • Exhaust air one-way flow control function valve function
  • Slotted head screw adjustment component
  • Screw-in type of mounting
  • 4320L2 standard nominal flow rate in flow control direction
  • 3220L2 standard nominal flow rate in blocked direction
  • 4320L2 standard nominal flow rate in blocked direction
  • See certificate maritime classification
  • Optional mounting position
  • 991452 symbol
  • 0.3BAR operating pressure complete temperature range
  • 10BAR operating pressure complete temperature range
  • 7300L2 standard flow rate in flow control direction 0.6->0 mPa (6->0 bar, 87->0 psi)
  • 5440L2 standard flow rate in non-return direction 0.6->0 mPa (6->0 bar, 87->0 psi)
  • 7300L2 standard flow rate in non-return direction 0.6->0 mPa (6->0 bar, 87->0 psi)
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • 60NM max. tightening torque
  • 377G product weight
  • RoHS-compliant note on materials
  • NBR material seals
  • Wrought aluminium alloy material hollow bolt
  • Brass material adjusting screw
  • Wrought aluminium alloy material nut
  • Die-cast zinc material swivel fitting
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection g3/4 , port 1
  • Pneumatic connection g3/4 , port 2
