Festo GRLO Series Throttle Valve

Adjustable unidirectional/bidirectional flow control valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0 to 10bar operating pressure
  • 14 to 140°F (-10 to 60°C) temperature range
  • Compressed air operating medium
    • Lubricated operation possible
  • Pneumatic connections:
    • Thread at both ends
    • Thread and push-in connector
  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom Class 4 according to ISO 14644-1

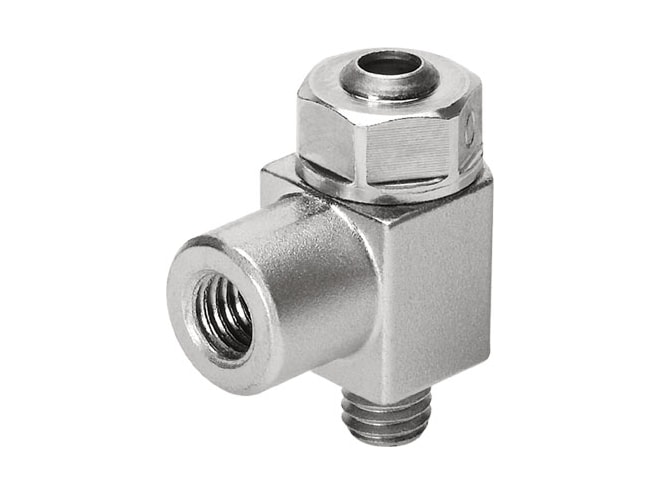

The Festo GRLO Series Throttle Valve offers flow control at both ends and precise adjustments for low and medium speeds. With the GRLO series, the flow rate is regulated in both directions by adjusting the knurled or slotted throttle screw, which adjusts the annular gap inside the valve. The GRLO series can operate at pressures between 0 and 10 bar and with media temperatures ranging from 14 to 140°F. Each valve has an L-shaped design with two pneumatic connection ports. It can be configured with either an M3 or M5 threaded connection for the first port, and the option of an identical thread, barb fitting, or push-in connector for the second connection port.

Applications

  • Mining and metals
