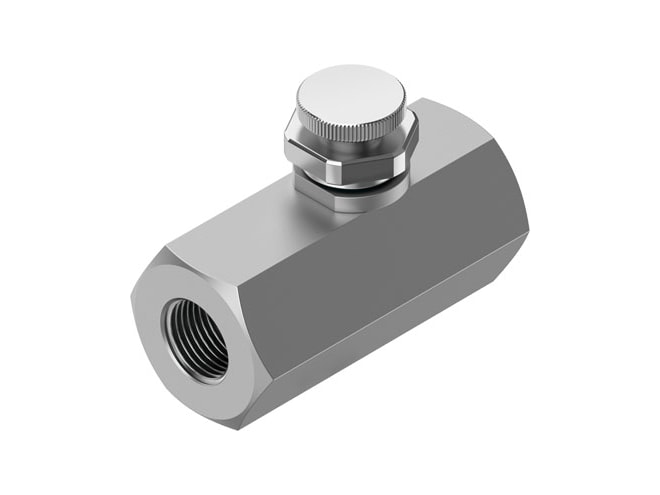

Festo GRO Series Throttle Valve

Bidirectional flow control valve with robust design for line installation.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Male thread or push-in connector
  • Housing materials:
    • GRO: aluminum alloy
    • GRO-QS: polymer-reinforced
  • Temperature range;
    • GRO: -4 to 140°F (-20 to 60°C)
    • GRO-QS: 14 to 140°F (-10 to 60°C)
  • Compressed air operating medium
    • Lubricated operation is possible
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Certified for ATEX zones 1, 2, 21, and 22
  • RoHS-compliant

The Festo GRO Series Throttle Valve regulates compressed air flow to control cylinder piston speed by providing flow throttling at both ends. It is constructed with a durable metal or polymer design and features threaded or push-in pneumatic connections for in-line installation. Airflow is approximately equal in both directions and precise adjustments may be made with the integrated knurled screw. The GRO model is designed for applications that require in-line flow control without a non-return function.

Applications

  • Mining and metals
