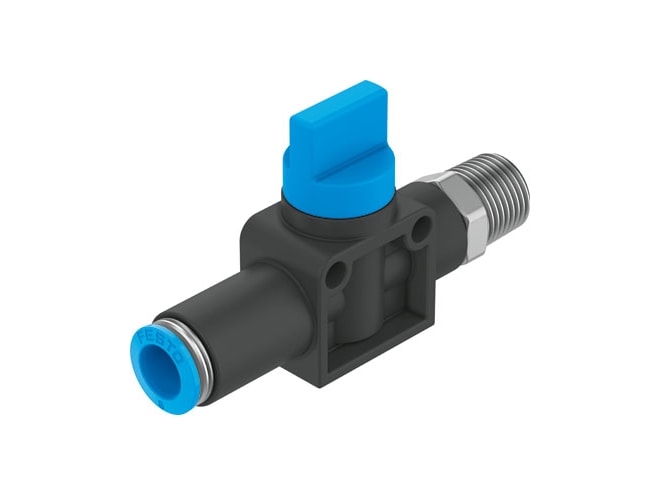

Festo HE Series Shut Off Valve

2/2 or 3/2 double solenoid valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 32-140°F ambient temperature
  • -0.95-10 bar operating pressure
  • Manually operated
  • Different mounting options

The Festo HE Series Shut Off Valve is available in both 2/2-way and 3/2-way configurations, offering versatility for different pneumatic applications. The valve features various connection options, including male threads, push-in connectors, or a combination of both, ranging from R1/8 to R1/2 or QS-6 to QS-12 mm.

Depending on the model and configuration, the HE valve provides standard nominal flow rates from 256.5 to 834.3 l/min. It is designed for both lubricated and non-lubricated operation, though once used with lubrication, it will always require lubricated air. The valve complies with RoHS standards and VDMA24364-B1/B2-L LABS (PWIS) conformity.

Part Number Price Available
HE-3-1/4-1/4
Show Configuration
$33.57 4 in stock
HE-3-1/4-QS-8
Show Configuration
$33.57 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
