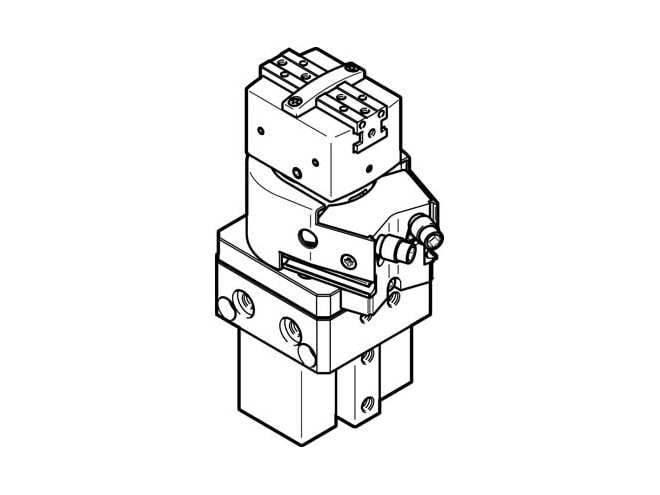

Festo HGDS Series Swivel Gripper Unit

Precise end stop with elastic cushioning or integrated shock absorber.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:00 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 5, 9, and 14mm stroke
  • 3-8 bar operating pressure
  • 41-140°F ambient temperature
  • Sizes 12, 16, 20 mm

The Festo HGDS Series Swivel Gripper Unit is a combination of a parallel gripper with a T-slot guide and a swivel module based on the DSM swivel module. It features an infinitely adjustable swivel angle up to 210°, with supply ports and position sensing outside the swivel range. It can be mounted on four sides and is suitable for a variety of handling and assembly applications, but not for aggressive media, grinding dust, or welding spatter.
