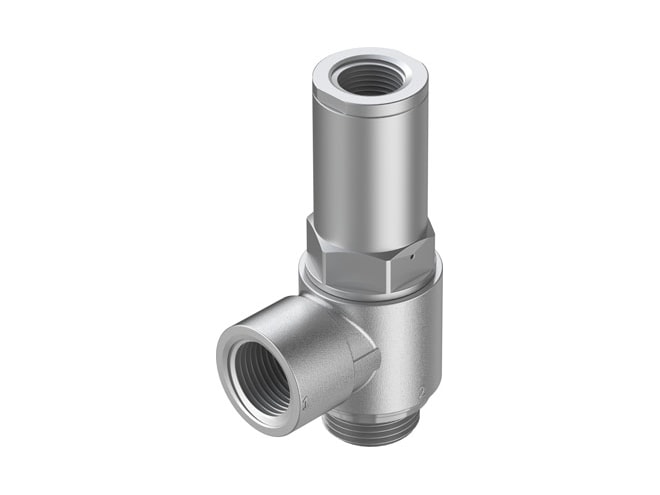

Festo HGL Series Piloted Check Valve

Screw-in with external thread.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.5-10 bar operating pressure
  • -10 to 140°F ambient temperature
  • 130-1400 l/min standard nominal flow rate
  • RoHS-compliant materials

The Festo HGL Series Piloted Check Valve is designed for pneumatic applications and offers a piloted non-return function with manual override options.

The HGL valve can be mounted via a male thread and is pneumatically piloted. It's available with various pneumatic connections, including push-in connectors and female threads, ranging from M5 to G1/2 sizes. The pilot air port can be M5, G1/8, G1/4, G3/8, or QS-4, depending on the model.

Operating conditions for the valve include a pressure range of 0.5 to 10 bar, with pilot pressures between 1 to 10 bar or 2 to 10 bar, depending on the specific model. The valve is designed for use with compressed air conforming to ISO 8573-1:2010 [7:4:4] standards.

Part Number Price Available
HGL-1/4-B
Show Configuration
$80.41 7 in stock
HGL-3/8-QS-8
Show Configuration
$95.79 4 in stock
HGL-1/4-QS-10
Show Configuration
$80.41 1 in stock
HGL-1/8-QS-6
Show Configuration
$65.89 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
