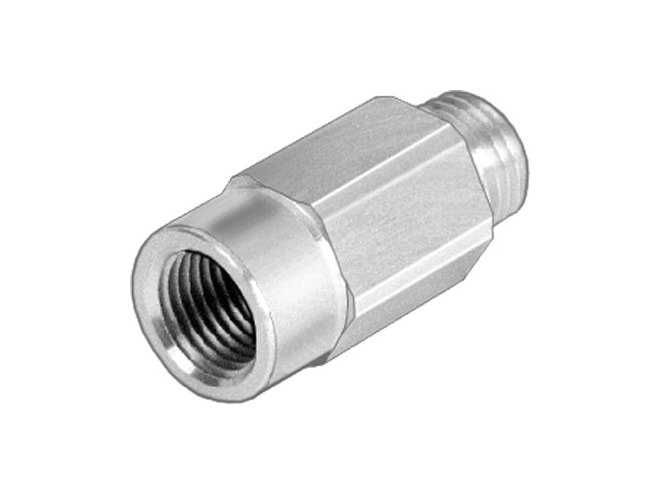

Festo ISV-1/8 Vacuum Security Valve

$43.19
Part Numbers
  • ISV-1/8
  • 33969
Highlights...

Features

  • G1/8 size
  • 8MPA suitable for ejector pulse
  • 8BAR suitable for ejector pulse
  • Optional mounting position
  • 991481 symbol
  • -0.095KPA operating pressure
  • 0KPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • 2L2 required suction volumetric flow at -0.05 mPa (-0.5 bar, -7.25 psi)
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • 9G product weight
  • Screw-in type of mounting
  • High-alloy steel material spring
  • Wrought aluminium alloy material filter
  • Stainless steel mesh material filter
  • Wrought aluminium alloy material housing
  • Wrought aluminium alloy material hollow bolt
  • POM material float
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection g1/8 , port 1
  • Pneumatic connection g1/8 , port 2
