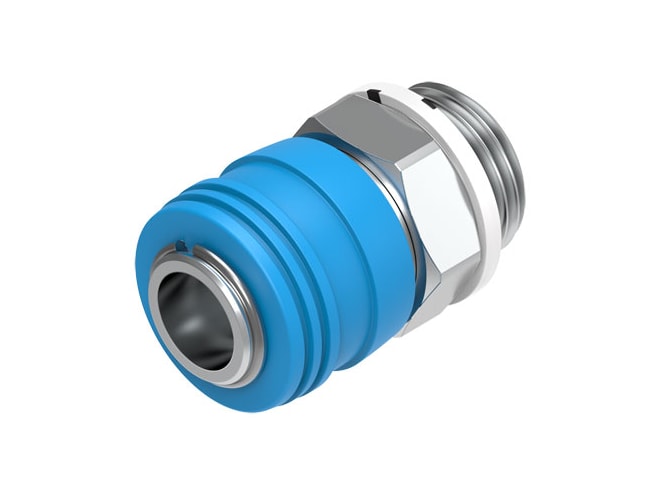

Festo KD4-1/2-A Quick Coupling Socket

Features

• 10MM nominal size
• -0.095MPA operating pressure complete temperature range
• 1.2MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 12BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 174PSI operating pressure complete temperature range
• 257L2 standard nominal flow rate
• 1337L2 standard nominal flow rate
• 278.6L2 nominal flow rate standardised according to iSO 8778
• 1449.3L2 nominal flow rate standardised according to iSO 8778
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible note on operating and pilot medium
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 32.5NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 78G product weight
• RoHS-compliant note on materials
• NBR material seals
• High-alloy stainless steel material spring
• Brass, nickel-plated material housing
• PA66-GF30/TPE-U material thread seal
• Nickel-plated brass material thread piece
• Brass material of inner raceway
• High-alloy stainless steel material snap ring
• High-alloy stainless steel material pins
• Brass valve body material
• PP material releasing sleeve
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection male thread G1/2 , port 1
