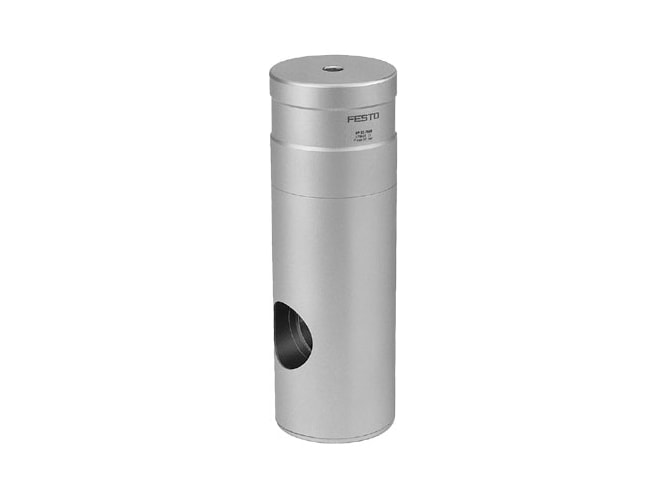

Festo KP-8-350 Clamping Cartridge

Features

• Optional mounting position
• On both sides type of clamping with direction of action
• Clamping via spring force, air to release type of clamping with direction of action
• Tilting wedge mechanism design
• Piston rod at one end variants
• 0.3MPA release pressure
• 3BAR release pressure
• 8MM round material to be clamped
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 350N static holding force
• 50G product weight
• NBR material seals
• TPE-U(PU) material seals
• Spring steel material spring
• Aluminium material housing
• Anodised material housing
• Brass material clamp jaws
• POM material piston
• 1MPA to 10BAR operating pressure
• -10GC ambient temperature to 80GC ambient temperature
