Festo KPE-8 Clamping Unit

$559.53
Part Numbers
  • KPE-8
  • 178464
Highlights...

Features

  • Optional mounting position
  • On both sides type of clamping with direction of action
  • Clamping via spring force, air to release type of clamping with direction of action
  • Tilting wedge mechanism design
  • Piston rod at one end variants
  • 0.3MPA release pressure
  • 3BAR release pressure
  • 8MM round material to be clamped
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 350N static holding force
  • 240G product weight
  • NBR material seals
  • TPE-U(PU) material seals
  • Spring steel material spring
  • Aluminium material housing
  • Anodised material housing
  • Brass material clamp jaws
  • POM material piston
  • 1MPA to 10BAR operating pressure
  • -10GC ambient temperature to 80GC ambient temperature

Tubes

Festo PUN-H-4X0,75-SW Plastic Tubing
Festo PUN-H-4X0,75-SW Plastic Tubing

$54.00
Festo PUN-H-4X0,75-TBL Plastic Tubing
Festo PUN-H-4X0,75-TBL Plastic Tubing

$54.00
Festo PUN-H-4X0,75-NT Plastic Tubing
Festo PUN-H-4X0,75-NT Plastic Tubing

$54.00
Festo PUN-H-4X0,75-BL Plastic Tubing
Festo PUN-H-4X0,75-BL Plastic Tubing

$54.00

Fittings

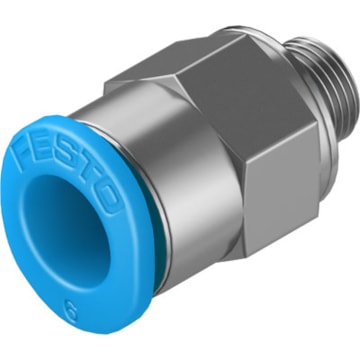

Festo QSM-M5-6 Push-in Fitting
Festo QSM-M5-6 Push-in Fitting

$26.50

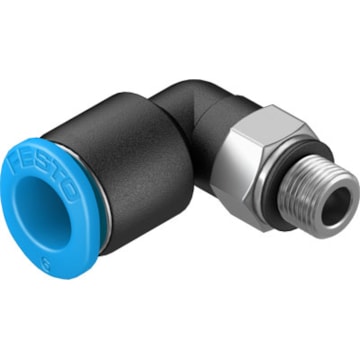

Festo QSML-M5-6 Push-in L-fitting
Festo QSML-M5-6 Push-in L-fitting

$36.90

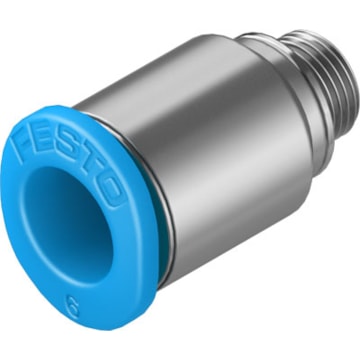

Festo QSM-M5-6-I Push-in Fitting
