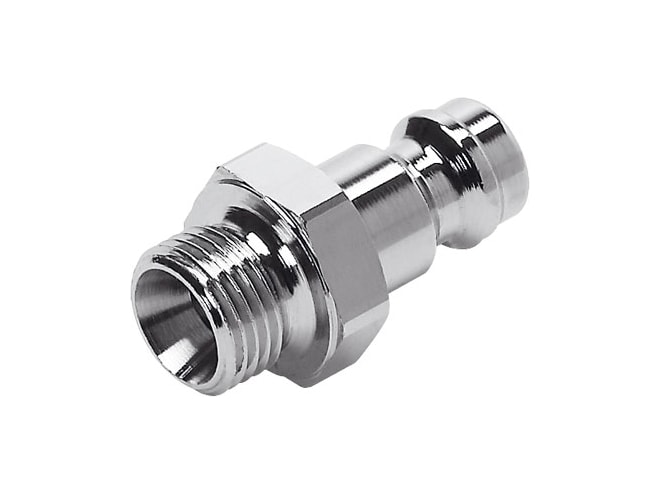

Festo KS3-1/8-A Quick Coupling Plug

$55.00
Part Numbers
  • KS3-1/8-A
  • 3492
Highlights...

Features

  • 4.95MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 225L2 standard nominal flow rate
  • 648L2 standard nominal flow rate
  • 243.9L2 nominal flow rate standardised according to iSO 8778
  • 702.4L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 5NM nominal torque
  • ± 15% tolerance for nominal tightening torque
  • 13G product weight
  • RoHS-compliant note on materials
  • PA66-GF30/TPE-U material thread seal
  • Brass, nickel plated information on materials
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection male thread G1/8 , port 1

This product is an accessory for the following products:

Festo KD3-1/8-A Quick Coupling Socket
Festo KD3-1/8-A Quick Coupling Socket

$21.22
