Festo LRL Series Differential Pressure Regulator

Constant differential pressure between input and output.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 30-760 l/min standard nominal flow rate
  • 0-130.5 psi pressure
  • 0-140°F ambient temperature
  • RoHS-compliant
  • Connecting thread M5, R1/8, R1/4, R3/8, R1/2
  • LRL model= outlet on top
  • LRLL model= outlet on side

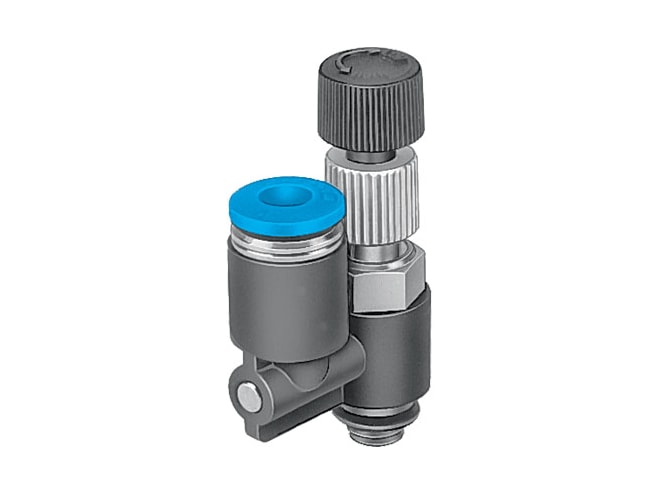

The Festo LRL Series Differential Pressure Regulators are compact devices designed to maintain a manually set differential pressure between the primary pressure at the threaded connection and the output pressure at the push-in connector. These regulators are available in two configurations: LRL with the outlet on top, and LRLL with the outlet on the side.

These regulators feature minimal dimensions and offer constant differential pressure between input and output. They are available with connecting threads ranging from M5 to R1/2, and push-in connectors for tubing outer diameters from 4 mm to 12 mm. The regulators can be rotated 360 degrees for flexible installation.

The LRL series offers standard nominal flow rates ranging from 30 to 760 l/min, depending on the model and port size. An integrated check valve allows pressure applied at the push-in connector to be exhausted without changing the pressure at the threaded connection.
