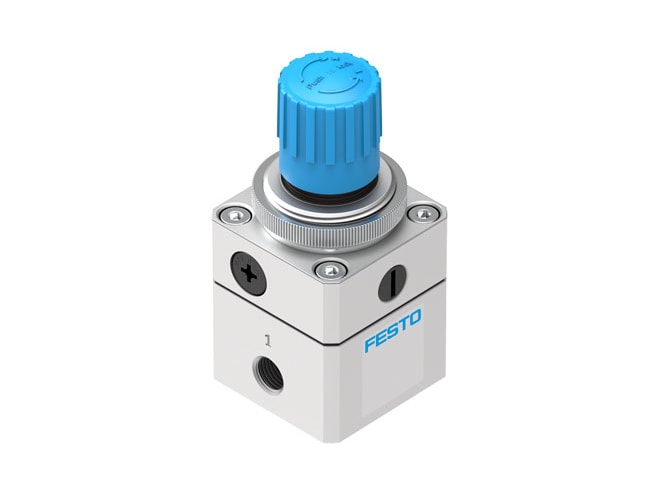

Festo LRP-1/8-6 Precision Pressure Regulator

For sensitive applications that require a pressure hysteresis of 0.02 bar LRP. View other configurations.

$148.56
Part Numbers
  • LRP-1/8-6
  • 2416371
Highlights...

Features

  • 40 size
  • LR series
  • Rotary knob with detent actuator lock
  • Optional mounting position
  • Piloted precision diaphragm control valve design
  • Output pressure constant controller function
  • With secondary venting controller function
  • 991540 symbol
  • Prepared for G1/8 pressure gauge (ANALOG) or pressure display (DIGITAL)
  • 0.1MPA operating pressure
  • 0.8MPA operating pressure
  • 1BAR operating pressure
  • 8BAR operating pressure
  • 0.02BAR max. pressure hysteresis
  • 300L2 standard nominal flow rate
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Inert gases operating medium
  • Lubricated operation not possible note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • 200G product weight
  • Front panel mounting type of mounting
  • In-line installation type of mounting
  • With accessories type of mounting
  • G1/8 pressure gauge connection
  • RoHS-compliant note on materials
  • NBR material seals
  • Aluminium material housing
  • NBR material membrane
  • 0.1BAR to 6BAR pressure regulation range
  • -10GC ambient temperature to 60GC ambient temperature
  • -10GC to 60GC storage temperature
  • Pneumatic connection g1/8 , port 1
  • Pneumatic connection g1/8 , port 2
