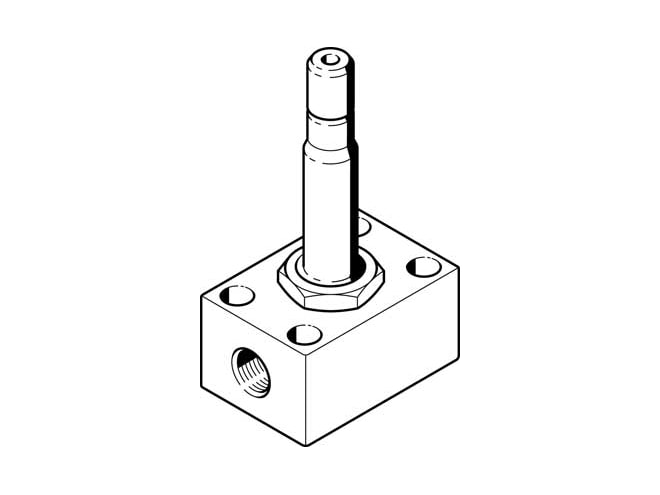

Festo MCH-3-1/8 Solenoid Valve

$199.26
Part Numbers
  • MCH-3-1/8
  • 2199
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Electric type of actuation
  • 160L2 standard nominal flow rate
  • 0MPA operating pressure
  • 0.7MPA operating pressure
  • 0BAR operating pressure
  • 7BAR operating pressure
  • Poppet valve with spring return design
  • Mechanical spring type of reset
  • IP65 degree of protection
  • 2.5MM nominal size
  • Soft sealing principle
  • Detenting manual override
  • Direct type of piloting
  • Non-reversible flow direction
  • 991308 symbol
  • 13MS switching time off
  • 12MS switching time on
  • 100% duty cycle
  • 110 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 110 V DC: 12.7 W characteristic coil data
  • 120 V AC: 60 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 12 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 12 V DC: 11.7 W characteristic coil data
  • 220 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 220 V DC: 15.0 W characteristic coil data
  • 240 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 240 V DC: 17.9 W characteristic coil data
  • 24 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 24 V DC: 11.0 W characteristic coil data
  • 380 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 42 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 42 V DC: 12.0 W characteristic coil data
  • 48 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA characteristic coil data
  • 96 V DC: 11.0 W characteristic coil data
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • VDMA24364-C1-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • -5GC ambient temperature to 40GC ambient temperature
  • -40GC to 100GC storage temperature
  • Pneumatic connection g1/8 , port 1
  • Pneumatic connection g1/8 , port 2
  • Pneumatic connection g1/8 , port 3
