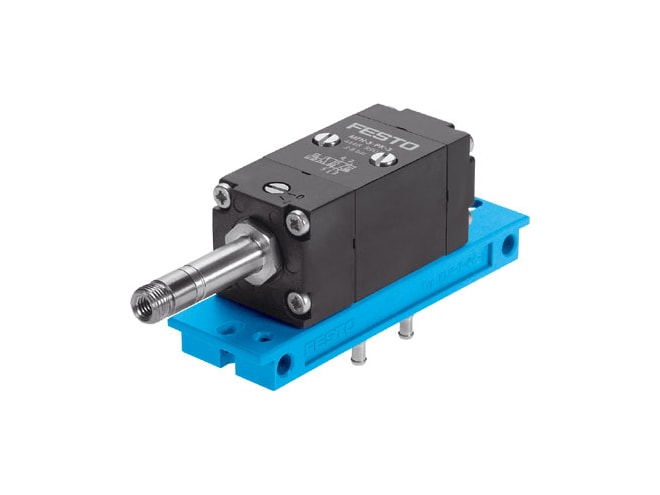

Festo MFH-5-PK-3-L Solenoid Valve

Features

• 5/2-way, monostable valve function
• 105L2 standard nominal flow rate
• Poppet seat design
• 2.5MM nominal size
• Soft sealing principle
• 991049 symbol
• 22MS switching time off
• 14MS switching time on
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• 270G product weight
• Either: type of mounting
• On sub-base type of mounting
• On mounting frame type of mounting
• With through-hole type of mounting
• RoHS-compliant note on materials
• Aluminium material sub-base
• Anodised material sub-base
• NBR material seals
• Aluminium material housing
• Anodised material housing
• 1.5BAR to 8BAR operating pressure
• -5GC ambient temperature to 40GC ambient temperature
• Pneumatic connection pK-3 , port 1
• Pneumatic connection pK-3 , port 2
• Pneumatic connection pK-3 , port 3
• Pneumatic connection pK-3 , port 4
• Pneumatic connection pK-3 , port 5
