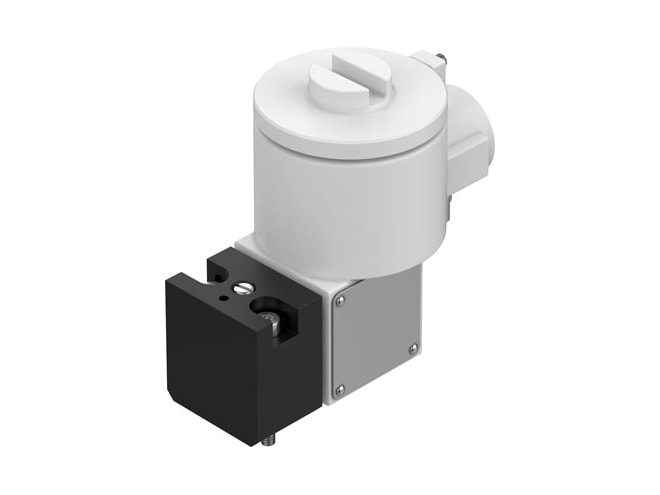

Festo MGXDH-3/2-1.2-24DC-EX Pilot Valve

Features

• 3/2-way, closed, monostable valve function
• Electric type of actuation
• -0.09MPA operating pressure
• 0.8MPA operating pressure
• -0.9BAR operating pressure
• 8BAR operating pressure
• -13.05PSI operating pressure
• 116PSI operating pressure
• On/off valve design
• Mechanical spring type of reset
• To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
• EPL Db (CN) explosion protection certification outside the eU
• EPL Db (IEC-EX) explosion protection certification outside the eU
• EPL Gb (CN) explosion protection certification outside the eU
• EPL Gb (IECEx) explosion protection certification outside the eU
• ATEX: CML 15 ATEX 1119X certificate issuing authority
• CCC-Ex: 2020322307001701 certificate issuing authority
• IEC: IECEx CML 17.0147X certificate issuing authority
• II 2G aTEX category gas
• II 2D aTEX category dust
• ATEX: Ex db IIC T5 Gb explosion ignition protection type for gas
• CCC-Ex: Ex d IIC T3/T6 Gb explosion ignition protection type for gas
• Ex tb IIIC T100°C Db explosion ignition protection type for dust
• ATEX: -65°C <= Ta <= +55°C explosion ambient temperature
• CCC-Ex: -20°C <= Ta <= +40°C explosion ambient temperature
• IP66 degree of protection
• Detenting manual override
• Non-reversible flow direction
• 991308 symbol
• 100% duty cycle
• H insulation material class
• 24 V DC: 3.0 W characteristic coil data
• +/- 10% permissible frequency fluctuations
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• -20GC ambient temperature
• 80GC ambient temperature
• CNOMO type of mounting
• RoHS-compliant note on materials
