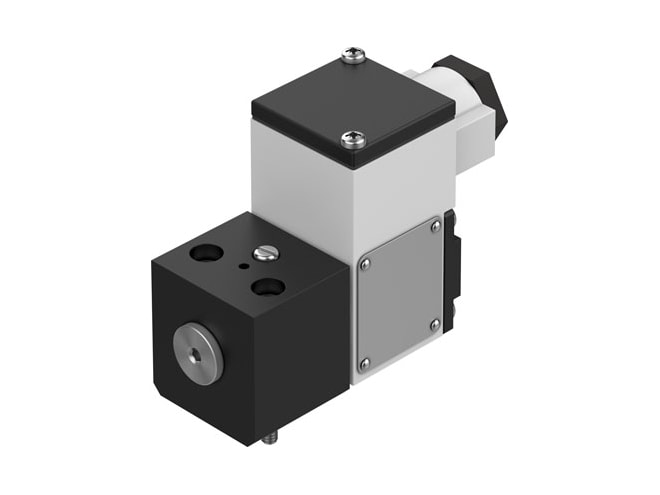

Festo MGXIAH-3/2-0.8-24DC-EX Pilot Valve

$349.20
Part Numbers
  • MGXIAH-3/2-0.8-24DC-EX
  • 535614
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Electric type of actuation
  • -0.09MPA operating pressure
  • 0.8MPA operating pressure
  • -0.9BAR operating pressure
  • 8BAR operating pressure
  • -13.05PSI operating pressure
  • 116PSI operating pressure
  • On/off valve design
  • Mechanical spring type of reset
  • To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
  • EPL Da (CN) explosion protection certification outside the eU
  • EPL Da (IECEx) explosion protection certification outside the eU
  • EPL Ga (CN) explosion protection certification outside the eU
  • EPL Ga (IEC-EX) explosion protection certification outside the eU
  • ATEX: CML 17 ATEX 2046X certificate issuing authority
  • CCC-Ex: 2020322307001726 certificate issuing authority
  • IEC: IECEx CML 17.0030X certificate issuing authority
  • II 1G aTEX category gas
  • II 1D aTEX category dust
  • Ex ia IIC T6...T5 Gb explosion ignition protection type for gas
  • Ex ia IIIC T135°C Db explosion ignition protection type for dust
  • -40°C<=Ta<=50 °C/65 °C explosion ambient temperature
  • IP65 degree of protection
  • Detenting manual override
  • Non-reversible flow direction
  • 991308 symbol
  • 100% duty cycle
  • H insulation material class
  • -40°C ~+50°C T6 = 2.98W max. input power pi
  • -40°C ~+65°C T135°C = 2.98W max. input power pi
  • -40°C ~+65°C T5 = 2.98W max. input power pi
  • -40°C ~+65°C T6 = 1W max. input power pi
  • 31 V max. input voltage ui
  • 0.67 A max. input current ii
  • 24 V DC: 1.5 W characteristic coil data
  • Negligibly low effective internal inductivity li
  • Negligibly low effective internal capacitance ci
  • +/- 10% permissible frequency fluctuations
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • -20GC ambient temperature
  • 80GC ambient temperature
  • CNOMO type of mounting
  • RoHS-compliant note on materials
