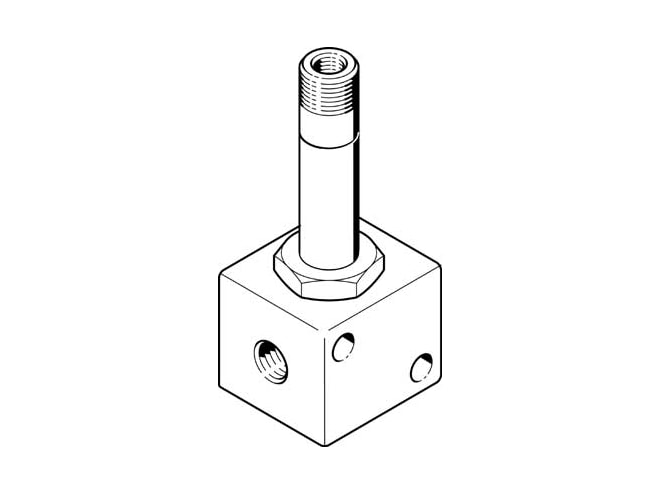

Festo MOFH-3-M5 Solenoid Valve

Features

• 3/2 open, single solenoid valve function
• Electric type of actuation
• 46L2 standard nominal flow rate
• 0MPA operating pressure
• 0.65MPA operating pressure
• 0BAR operating pressure
• 6.5BAR operating pressure
• Poppet seat design
• Mechanical spring type of reset
• C UL us - Recognized (OL) approval
• 1.5MM nominal size
• Without flow control option exhaust-air function
• Soft sealing principle
• Optional mounting position
• Detenting manual override
• Direct type of piloting
• Non-reversible flow direction
• 991322 symbol
• 8.5MS switching time off
• 12MS switching time on
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• VDMA24364-B2-L lABS (PWIS) conformity
• -15GC media temperature
• 60GC media temperature
• With through-hole type of mounting
• -15GC ambient temperature to 40GC ambient temperature
• Pneumatic connection m5 , port 1
• Pneumatic connection m5 , port 2
• Pneumatic connection m5 , port 3
