Festo MS12-LOE-G-U Lubricator

Compact lubricator with a flow rate of 20,000 to 22,000l/min and an oil capacity of 30 to 1500cm³.

$404.36
Part Numbers
  • MS12-LOE-G-U
  • 537156
Highlights...

Features

  • 12 size
  • MS series
  • Vertical +/-5° mounting position
  • Proportional standard mist lubricator design
  • 1500CCM max. oil capacity
  • Integrated as metal bowl bowl guard
  • 991532 symbol
  • 400L2 min. flow rate for lubricator function
  • 20000L2 standard nominal flow rate
  • 22000L2 standard nominal flow rate
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class CRC
  • VDMA24364-B1/B2-L LABS (PWIS) conformity
  • 0°C media temperature
  • 60°C media temperature
  • ISO VG 32 oil viscosity
  • 6500G product weight
  • Either: type of mounting
  • In-line installation type of mounting
  • Via mounting bracket type of mounting
  • PA material covering
  • NBR material seals
  • Die-cast aluminum material housing
  • Wrought aluminum alloy material bowl
  • 1 bar to 16 bar operating pressure
  • 0°C ambient temperature to 60°C ambient temperature
  • -10°C to 60°C storage temperature
  • Pneumatic connection internal, port 1
  • Pneumatic connection internal, port 2

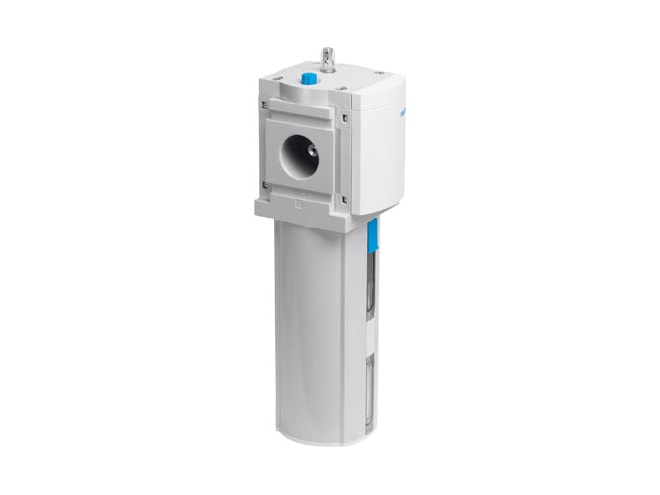

The Festo MS12-LOE-G-U is a compact lubricator designed for close use processing near the machine. It is a proportional lubricator with precision oil dosing and has a grid dimension of 124mm. It aids in reducing wear on drive units subjected to high loads. The lubricator features a high flow performance and quick oil top-up, even under pressure. The MS12-LOE-G-U has a flow rate of 20,000 to 22,000l/min and an oil capacity of 30 to 1500cm³.
