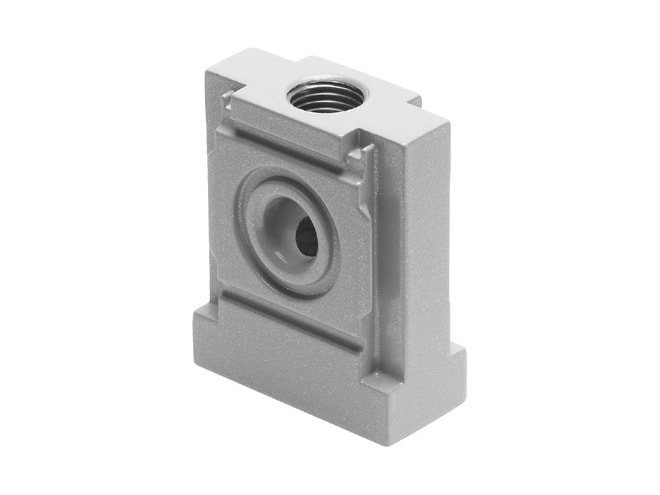

Festo MS4N-FRM-FRZ Distributor Block

Features

• Optional mounting position
• Branching module design
• 991510 symbol
• 4050L2 standard nominal flow rate in main flow direction 1->2
• 3250L2 standard nominal flow rate, outlet upwards
• 2900L2 standard nominal flow rate, outlet downwards
• C UL us - Recognized (OL) approval
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Inert gases operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• 60G product weight
• RoHS-compliant note on materials
• Die-cast aluminium material housing
• 0BAR to 14BAR operating pressure
• -10GC ambient temperature to 60GC ambient temperature
• -10GC to 60GC storage temperature
• Pneumatic connection 1/4 NPT , port 3
• Pneumatic connection 1/4 NPT , port 4
