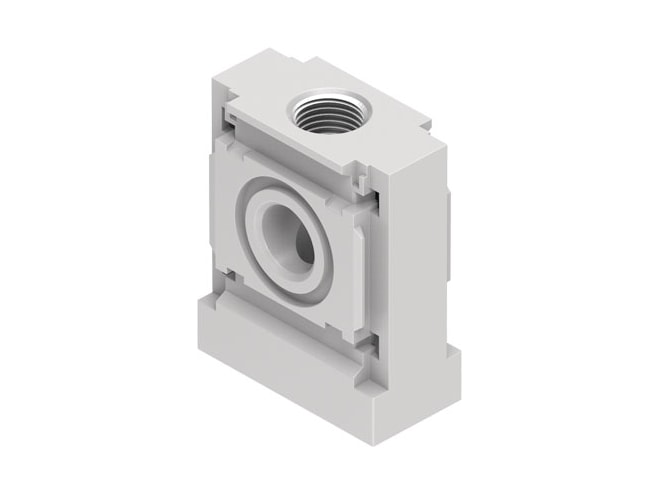

Festo MS6-FRM-FRZ Distributor Block

Distributor block with a branching module design and standard nominal flow rate of 14600 l/min.

$21.63
Part Numbers
  • MS6-FRM-FRZ
  • 549337
Highlights...

Features

  • Optional mounting position
  • Branching module design
  • 991510 symbol
  • 14600L2 standard nominal flow rate in main flow direction 1->2
  • 10400L2 standard nominal flow rate, outlet upwards
  • 9850L2 standard nominal flow rate, outlet downwards
  • C UL us - Recognized (OL) approval
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Inert gases operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • 163G product weight
  • RoHS-compliant note on materials
  • Die-cast aluminium material housing
  • 0BAR to 20BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • -10GC to 60GC storage temperature
  • Pneumatic connection g1/2 , port 3
  • Pneumatic connection g1/2 , port 4
