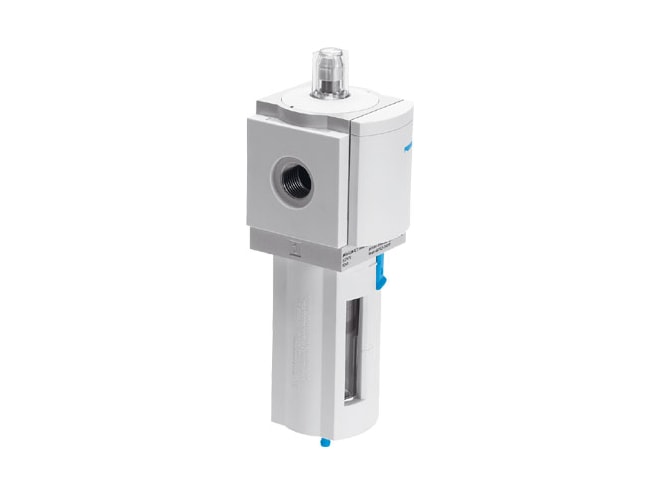

Festo MS6-LFM Series Micro Filter
0.01 or 1μm filter with threaded or connecting plate configurations. Condensate drains offered in manual, semi- and fully automatic. Up to 3000 l/min.
Overview
Features
- Pneumatic connections:
- Female thread: G1/4, G3/8 or G1/2
- Connecting plate AG-: G1/4, G3/8, G1/2 or G3/4
- Connecting plate AQ-: 1/4 NPT, 3/8 NPT, 1/2 NPT or 3/4 NPT

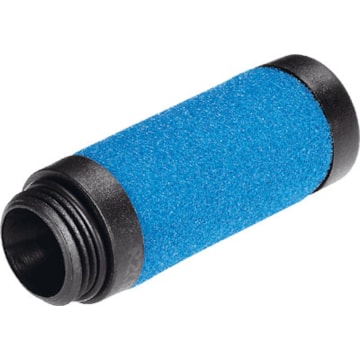

- Fibre filter: 0.01 to 1μm
- Compressed air to ISO 8573-1:2010 [1:7:2] (grade of filtration 0.01 μm, micro filter MS-LFM-A)
- Compressed air to ISO 8573-1:2010 [5:7:3] (grade of filtration 1 μm, fine filter MS-LFM-B)
- Bowl guard: plastic, metal
- Condensate drain: manual, semi-automatic, fully automatic, fully automatic/eletrically actuated
- Differential pressure display optional
- Corrosion resistance class CRC
- Optional filter pollution indicator
- ATEX and cULus certification available with certain configurations
- Mounting: with bracket accessories
Description
The Festo MS6-LFM Series Filter is a high-efficiency .01 to 1μm filtering component for exceptionally clean compressed air, tested to ISO 8573-1:2010 standards. There is a choice of manual, semi-automatic and fully automatic condensate drains, with a fully automated, electrically actuated option as well. Units come with the option of a differential pressure indicator for filter contamination, or an electronic filter pollution indicator. The standard flow rate ranges from 135 to 900 l/min, up through 188 to 3000 l/min (with high flow rate configurations). This filter is well suited for sealing air and purge air applications. An ATEX rated option is available for hazardous areas falling under Zone 1, 2, 21 and 22.
