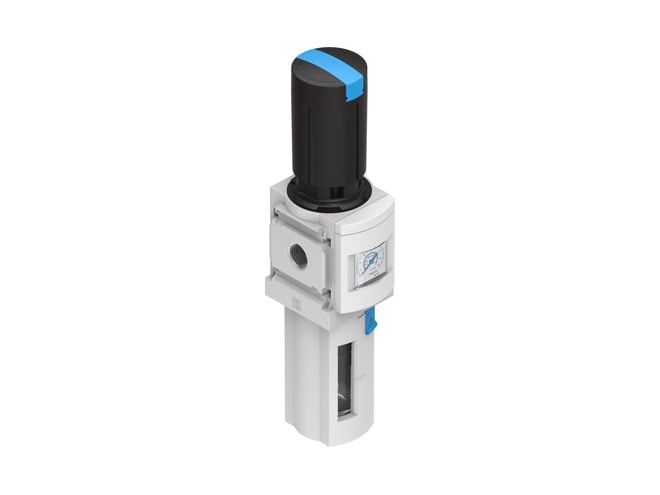

Festo MS6-LFR Series Filter Regulator

Filter regulator designed for particle and condensate separation with a high flow rate.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Width dimension 62mm
  • Directly actuated diaphragm regulator
  • Regulation characteristics with minimal pressure hysteresis and primary pressure compensation
  • Particle and condensate separation
  • With or without secondary venting
  • High flow rate
  • Lockable rotary knob
  • Return flow option for exhausting from output 2 to input 1 already integrated

The Festo MS6-LFR series is a filter regulator designed with minimal pressure hysteresis and primary pressure compensation characteristics. These regulators are suitable for use for all functions in compressed air preparation: valves for pressure regulation, shut off, filter regulation, and soft start, with safety function; pressure and flow sensors, filter, dryer, water trap, sensors, lubricator, and distributor. The regulators feature a lockable rotary knob and an integrated return flow option for exhausting from output 2 to input 1.

Part Number Price Available
MS6-LFR-1/2-D6-CRM-AS
Show Configuration
$82.67 5 in stock
MS6-LFR-1/2-D7-ERM-RG-AS
Show Configuration
$0.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
