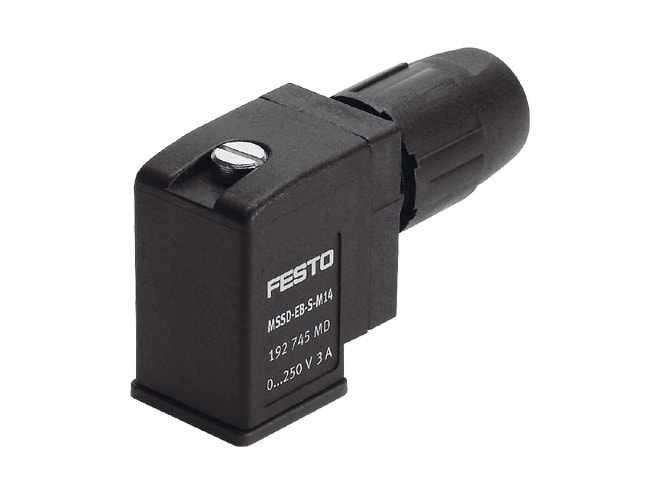

Festo MSSD-EB-S-M14 Plug Socket

Features

• 10 frequency of connection
• On solenoid valve via M2.5 central screw type of mounting
• Optional mounting position
• 17G product weight
• 4-pin electrical connection
• Socket electrical connection
• Type C electrical connection
• 4MM cable diameter
• 6MM cable diameter
• 0.25I2 nominal cross section conductor
• 0.5I2 nominal cross section conductor
• IP67 degree of protection
• To IEC 60529 degree of protection
• VDMA24364-B2-L lABS (PWIS) conformity
• PA material housing
• Black housing colour
• -25GC ambient temperature to 90GC ambient temperature
