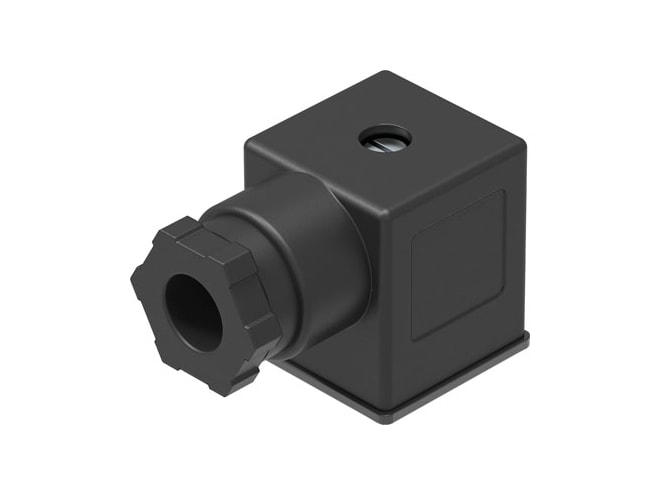

Name: Festo MSSD-N Plug Socket
Price: 3.06 USD
Availability: BackOrder

$3.06

Part Numbers

MSSD-N
550067

Highlights...

MSSD-N
By Festo
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 7-10 business days

Features

EN 175301-803 based on standard
Angled cable outlet
30G product weight
Angular electrical connection 1, design
Socket electrical connection 1, connection type
Plug pattern type A to EN 175301-803 electrical connection 1, connector system
3 electrical connection 1, number of connections/cores
On solenoid valve via M3 central screw electrical connection 1, type of mounting
995648 electrical connection 1, connection pattern
Screw terminal electrical connection 2, connector system
0V operational voltage range dC
24V operational voltage range dC
0V operational voltage range aC
250V operational voltage range aC
16A current rating at 40° c
M20x1.5 cable fitting
8MM cable diameter
10MM cable diameter
1.5I2 nominal cross section conductor
IP65 degree of protection
In assembled state note on degree of protection
VDMA24364 zone III lABS (PWIS) conformity
RoHS-compliant note on materials
PA-reinforced material housing
Black housing colour
Steel material screws
VMQ material seals
-25GC ambient temperature to 80GC ambient temperature
