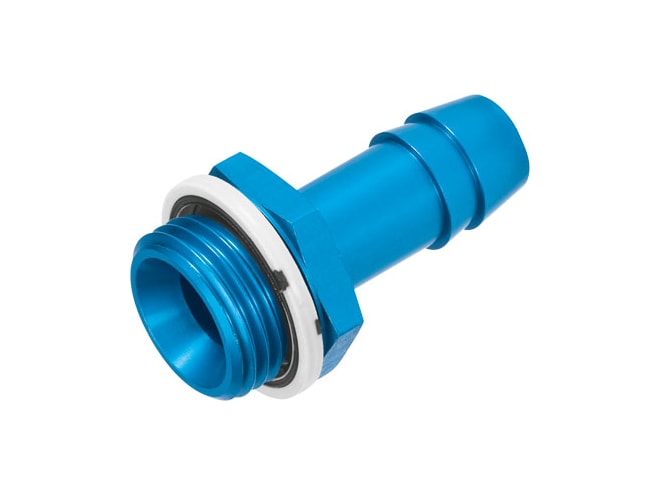

Festo N-3/4-P-19-NPT Barbed Hose Fitting
$30.01
Part Numbers
- N-3/4-P-19-NPT
- 564848
Highlights...
- N-3/4-P-19-NPT
- By Festo
- FREE Shipping on orders of $1,000 or more
- FREE Lifetime Tech Support
Overview
Features
- 16.5MM nominal size
- Coating type of seal on screwed plug
- Optional mounting position
- Straight design design
- 1 size of pack
- -0.95BAR operating pressure complete temperature range
- 16BAR operating pressure complete temperature range
- Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
- Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
- 2 - Moderate corrosion stress corrosion resistance class cRC
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- 40NM max. tightening torque
- 44G product weight
- RoHS-compliant note on materials
- Anodised aluminium material housing
- -10GC ambient temperature to 60GC ambient temperature
- Pneumatic connection male thread 3/4 NPT , port 1
- Pneumatic connection for tubing I.D. 19 mm , port 2
This product is an accessory for the following products:
