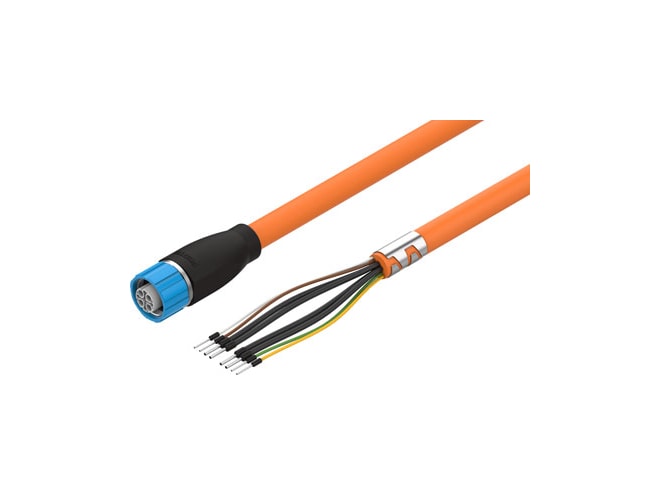

Name: Festo NEBM-M16G8-E-5-Q7-LE8 Motor Cable
Price: 282.6 USD
Availability: BackOrder

$282.60

Part Numbers

NEBM-M16G8-E-5-Q7-LE8
8003770

Highlights...

NEBM-M16G8-E-5-Q7-LE8
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

EN 61984 based on standard
Without inscription label holder cable designation
Field device side electrical connection 1, function
Round electrical connection 1, design
Socket electrical connection 1, connection type
Straight electrical connection 1, cable outlet
M16x0.75 electrical connection 1, connector system
8 electrical connection 1, number of connections/cores
6 electrical connection 1, used connections/cores
995654 electrical connection 1, connection pattern
Controller side electrical connection 2, function
Cable electrical connection 2, connection type
Open end electrical connection 2, connector system
8 electrical connection 2, number of connections/cores
6 electrical connection 2, used connections/cores
0V operational voltage range dC
600V operational voltage range dC
0 - 300 V for conductor cross section 0.25 mm² note on operational voltage range dC
0V operational voltage range aC
600V operational voltage range aC
0 - 300 V for conductor cross section 0.25 mm² note on operational voltage range aC
12A current rating at 40° c
4 A for conductor cross section 0.25 mm² note on permissible current load at 40°C
6KV immunity to surge
4 kV for conductor cross section 0.25 mm² note on immunity to surge
Yes shielding
5M cable length
Suitable for energy chains cable characteristic
55MM bending radius, fixed cable
110MM bending radius, moving cable
11MM cable diameter
4 x 0.75 mm² + 2 x (2 x 0.25 mm²) cable structure
0.25I2 nominal cross section conductor
0.75I2 nominal cross section conductor
Wire end sleeve wire ends
IP65 degree of protection
In assembled state note on degree of protection
-50GC ambient temperature
90GC ambient temperature
-40GC ambient temperature with moving cable
90GC ambient temperature with moving cable
To EU Low Voltage Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
To UK regulations for electrical equipment cE marking (see declaration of conformity)
VDMA24364-B2-L lABS (PWIS) conformity
RoHS-compliant note on materials
3 pollution degree
0 - No corrosion stress corrosion resistance class cRC
TPE-U(PUR) material cable sheath
Orange cable sheath colour
TPE-E material insulating sheath
