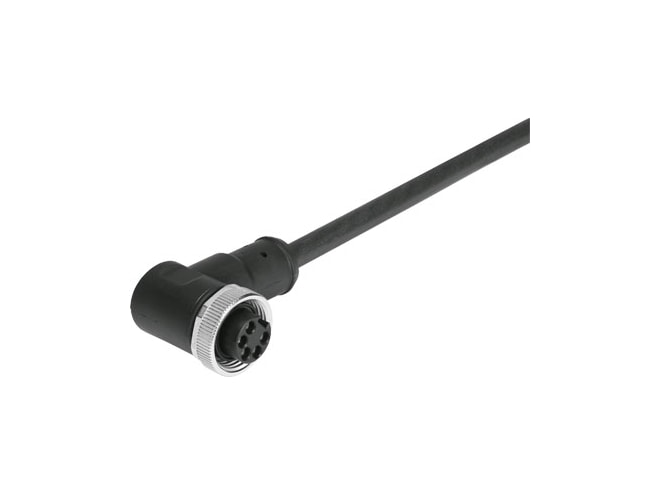

Festo NEBU-G78W5-K-2-N-LE5 Power Supply Socket

Features

• NFPA/T3.5.29 R1-2007 based on standard
• Without inscription label holder cable designation
• 100 frequency of connection
• 680G product weight
• Field device side electrical connection 1, function
• Round electrical connection 1, design
• Socket electrical connection 1, connection type
• Angled electrical connection 1, cable outlet
• Cable outlet not in line with the industry standard. Matched with the CPX protective cover. electrical connection 1, note on cable outlet
• G7/8 coded to NFPA/T3.5.29 R1-2007 electrical connection 1, connector system
• 5 electrical connection 1, number of connections/cores
• 5 electrical connection 1, used connections/cores
• Screw-type lock electrical connection 1, type of mounting
• 995652 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Cable electrical connection 2, connection type
• Open end electrical connection 2, connector system
• 5 electrical connection 2, number of connections/cores
• 5 electrical connection 2, used connections/cores
• 0V operational voltage range dC
• 300V operational voltage range dC
• 0V operational voltage range aC
• 300V operational voltage range aC
• 9A current rating at 40° c
• 4KV immunity to surge
• 2M cable length
• Standard cable characteristic
• Test conditions on request test conditions cable
• 65MM bending radius, fixed cable
• 8.7MM cable diameter
• ± 0.2 mm cable diameter tolerance
• 5 x 1.5 mm² cable structure
• 1.5I2 nominal cross section conductor
• IP65 degree of protection
• IP67 degree of protection
• In assembled state note on degree of protection
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• To UK regulations for electrical equipment cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• 1 - Low corrosion stress corrosion resistance class cRC
• TPE-U(PUR) material cable sheath
• Black cable sheath colour
• TPE-U(PUR) material housing
• Black housing colour
• Nickel-plated brass material screw-type lock
• Gold-plated brass material electrical contact
• -20GC ambient temperature to 80GC ambient temperature
