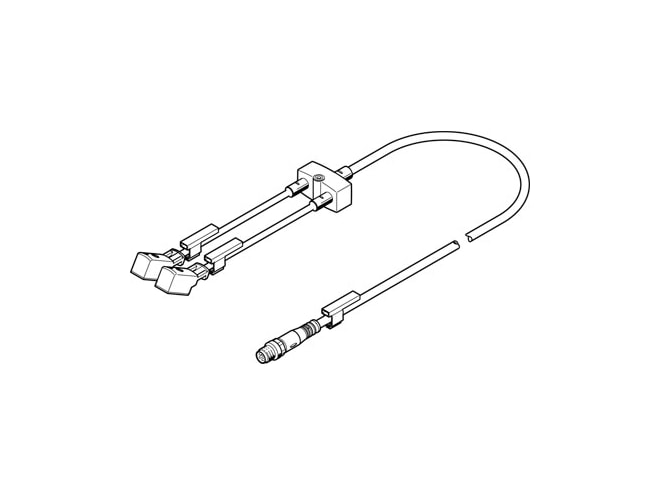

Festo NEDY-L2R1-V1-Z4W2Z-U-0.3L-M8G4-2.5R Distributor

Signal distributor with Socket connection pattern ZC, metric screw on field device side, and Plug M8x1 A-coded, EN 61076-2-104 on the controller side. Display: LED signal status, holding current reduction. Cable (left, right): 0.3m , 2.5m. View other configurations.

$64.27
Part Numbers
  • NEDY-L2R1-V1-Z4W2Z-U-0.3L-M8G4-2.5R
  • 8035789
Highlights...

Features

  • EN 61076-2-104 based on standard
  • RCM trademark approval
  • Y-distributor with cables on both sides design
  • Y type distrubution
  • Yellow LED signal status display
  • Holding current reduction additional functions
  • With label holder cable designation
  • Via through-hole for M2 screw type of mounting
  • With accessories type of mounting
  • 82G product weight
  • Controller side electrical connection 1, function
  • Round electrical connection 1, design
  • Plugs electrical connection 1, connection type
  • Straight electrical connection 1, cable outlet
  • M8x1, A-coded, to EN 61076-2-104 electrical connection 1, connector system
  • 4 electrical connection 1, number of connections/cores
  • 3 electrical connection 1, used connections/cores
  • 995633 electrical connection 1, connection pattern
  • Field device side electrical connection 2, function
  • Angular electrical connection 2, design
  • 2x socket electrical connection 2, connection type
  • Angled electrical connection 2, cable outlet
  • Plug pattern ZC, metric screw electrical connection 2, connector system
  • 2 electrical connection 2, number of connections/cores
  • 2 electrical connection 2, used connections/cores
  • 995625 electrical connection 2, connection pattern
  • 20.4V operational voltage range dC
  • 27.6V operational voltage range dC
  • 1A current rating at 40° c
  • 0.8KV immunity to surge
  • 2.5M cable length 1
  • 0.3M cable length 2
  • Suitable for energy chains/robot applications cable characteristic
  • Standard for field device side notes on cable characteristic
  • Bending strength: to Festo standard test conditions cable
  • Test conditions on request test conditions cable
  • Torsional resistance: > 300,000 cycles, ± 270°/0.1 m test conditions cable
  • Energy chain: > 5 million cycles, bending radius 28 mm test conditions cable
  • For standard cable characteristics: energy chain: 1.5 million cycles, bending radius 75 mm, flexural strength: as per Festo standard, test conditions on request notes on test conditions cable
  • 39MM min. bending radius with free moving insert 1
  • 30MM min. bending radius with free moving insert 2
  • 3.8MM cable diameter 1
  • 2.9MM cable diameter 2
  • 0.25I2 nominal cross section conductor
  • IP65 degree of protection
  • -10GC ambient temperature
  • 50GC ambient temperature
  • -10 - 40°C with mounting via through-hole note on ambient temperature
  • -5GC ambient temperature with moving cable
  • 50GC ambient temperature with moving cable
  • To EU EMC Directive cE mark (see declaration of conformity)
  • In accordance with EU RoHS Directive cE mark (see declaration of conformity)
  • To UK instructions for EMC cE marking (see declaration of conformity)
  • To UK RoHS instructions cE marking (see declaration of conformity)
  • VDMA24364-B2-L lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • 3 pollution degree
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • TPE-U(PUR) material cable sheath
  • Grey cable sheath colour
  • PA material housing
  • TPE-U(PUR) material housing
  • Black housing colour
  • NBR material seals
  • TPE-O material seals
  • Gold-plated copper alloy material electrical contact
  • Copper alloy, tin-plated material electrical contact
  • Nickel-plated brass material threaded sleeve
  • -10GC to 50GC storage temperature
