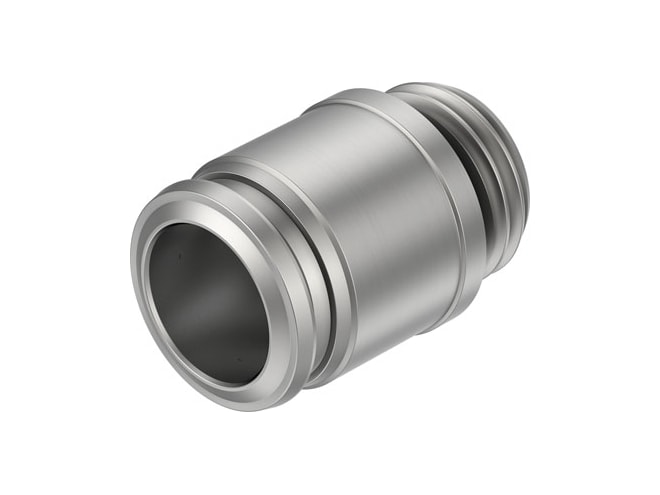

Festo NPQR-DK-G12-Q16 Push-in Fitting

$90.12
Part Numbers
  • NPQR-DK-G12-Q16
  • 8085671
Highlights...

Features

  • Standard size
  • 12.6MM nominal size
  • 23.5MM tubing insertion depth
  • Sealing ring type of seal on screwed plug
  • Optional mounting position
  • Straight design design
  • 1 size of pack
  • Push-pull principle design
  • 997424 symbol
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • Water: max. 0.7 MPa at 0 - 80 °C note on operating pressure
  • NSF C0556009 certificate issuing authority
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Water (liquid, ice-free) operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 4 - Very high corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
  • Class 4 according to ISO 14644-1 cleanroom class
  • See declaration of conformity suitable for use with food
  • NSF/ANSI 169 suitable for use with food
  • -5GC ambient temperature
  • 150GC ambient temperature
  • With PUN-H: -20°C - 60°C note on ambient temperature
  • 9NM nominal torque
  • ± 20% tolerance for nominal tightening torque
  • 53G product weight
  • Internal hexagon, size 12 mm type of mounting
  • RoHS-compliant note on materials
  • High-alloy stainless steel material housing
  • FPM material thread seal
  • High-alloy stainless steel guard ring material
  • High-alloy stainless steel material release ring
  • FPM material tubing seal
  • High-alloy stainless steel material tubing clamp component
  • PPSU thrust ring material
  • Pneumatic connection male thread G1/2 , port 1
  • Pneumatic connection for tubing outside diameter of 16 mm , port 2
