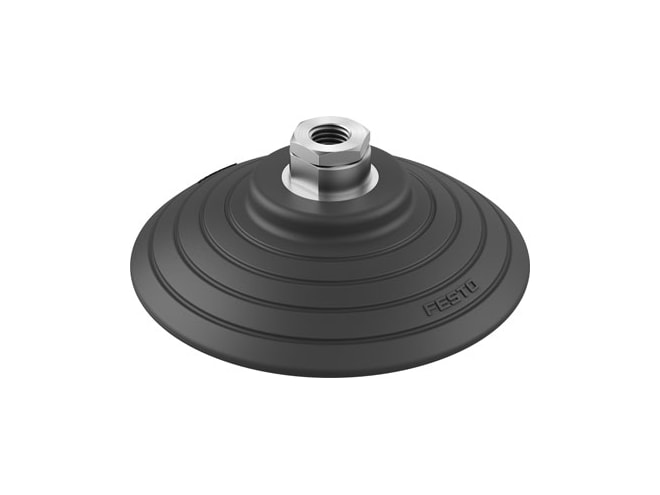

Festo OGVM-125-S-N-G14F Suction Cup Complete

125mm diameter, Round, standard constructed with Nitrile rubber. View other configurations.

$73.67
Part Numbers
  • OGVM-125-S-N-G14F
  • 8073822
Highlights...

Features

  • 12.5MM height compensator for suction cup
  • 135MM min. workpiece radius
  • 8MM nominal size
  • 125MM suction cup diameter
  • 132CCM suction cup volume
  • Top position of connection
  • Optional mounting position
  • 991485 symbol
  • Round, flat suction cup shape
  • -0.095KPA operating pressure
  • 0KPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -13.775PSI operating pressure
  • 0PSI operating pressure
  • -0.06KPA nominal operating pressure
  • -0.6BAR nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 606N holding force at nominal operating pressure
  • 429N lateral force at nominal operating pressure
  • 151G product weight
  • Via vacuum port type of mounting
  • Female thread G1/4 vacuum connection
  • Black colour
  • 60 +/- 5 shore hardness
  • Wrought aluminium alloy material screwed plug
  • RoHS-compliant note on materials
  • NBR material suction cup
  • -20GC ambient temperature to 80GC ambient temperature
