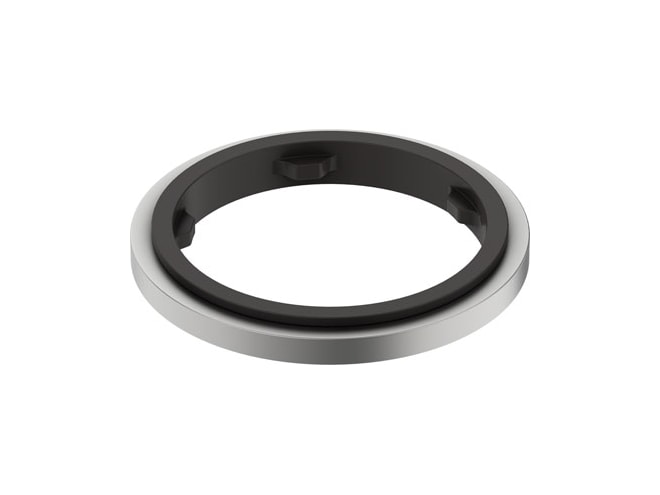

Festo OL-1/8 Sealing Ring

Features

• ISO 16030 based on standard
• -0.095MPA operating pressure complete temperature range
• 3MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 30BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 435PSI operating pressure complete temperature range
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• Element installed statically, no meaningful evaluation possible according to ISO 14644-1 cleanroom class
• Yes tightening by hand at room temperature
• 6NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 0.14G product weight
• RoHS-compliant note on materials
• Aluminium material stops
• HNBR material seals
• -40GC ambient temperature to 100GC ambient temperature
• Pneumatic connection g1/8
