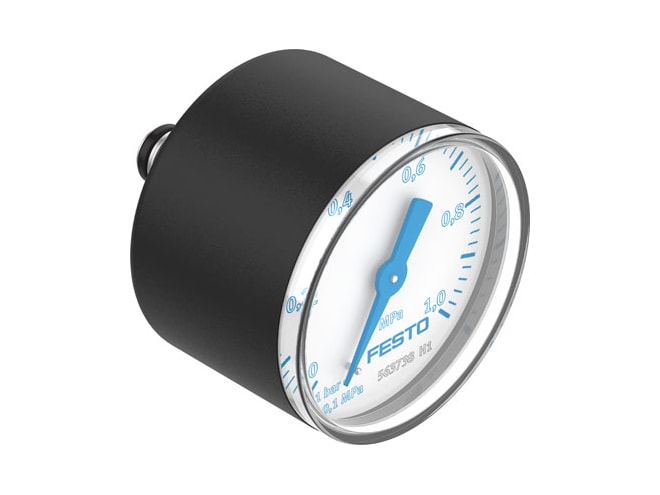

Festo PAGN-40-1M-P10-CPA Pressure Gauge

Direct mount 40mm diameter gauge with 0 to 1 MPa range with 2.5 FS accuracy. Standard Cartridge 10mm pneumatic connection. Additional display: None. Certification: CPA (Certification for measuring devices in China). View other configurations.

$20.81
Part Numbers
  • PAGN-40-1M-P10-CPA
  • 563738
Highlights...

Features

  • 991463 symbol
  • EN 837-1 conforms to standard
  • 40 nominal size of pressure gauge
  • Bourdon tube pressure gauge design
  • In-line installation type of mounting
  • Inert gases operating medium
  • Neutral fluids operating medium
  • 0MPA operating pressure
  • 1MPA operating pressure
  • 0BAR operating pressure
  • 10BAR operating pressure
  • 0PSI operating pressure
  • 145PSI operating pressure
  • 0.66 alternating load factor
  • 2.5 measurement accuracy class
  • IP43 degree of protection
  • -20GC media temperature
  • 60GC media temperature
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • Centred, rear side position of connection
  • Brass material in contact with the medium
  • Brass material screwed plug
  • ABS material housing
  • PS material screen
  • Black housing colour
  • 50G product weight
  • No acetylene note on operating and pilot medium
  • No oxygen note on operating and pilot medium
  • Single scale scale
  • MPa (outer scale) scale
  • 0MPA to 1MPA indicating range
  • -20GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection cartridge 10 mm
