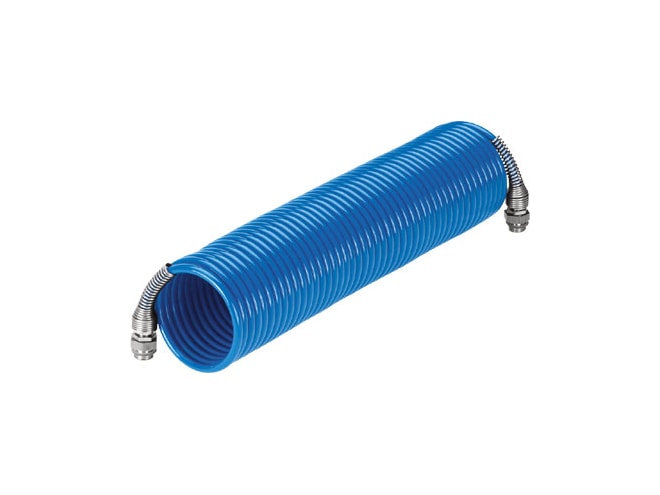

Festo PPS-6-15-1/4-BL Spiral Plastic Tubing
Spiral plastic tubing with 6.2mm inside diameter and 15m length. View other configurations.
$229.87
Part Numbers
- PPS-6-15-1/4-BL
- 19797
Highlights...
- PPS-6-15-1/4-BL
- By Festo
- FREE Shipping on orders of $1,000 or more
-
Manufacturer has 40 in stock.Additional 2-3 days to process. Call for expedite options.
Overview
Features
- 15M working length
- 7.8MM outside diameter
- 0.8M block length
- 6.2MM inside diameter
- 75MM winding diameter
- 86 number of turns
- Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
- 1 - Low corrosion stress corrosion resistance class cRC
- VDMA24364-B2-L lABS (PWIS) conformity
- 11NM nominal torque
- ± 20% tolerance for nominal tightening torque
- 500G product weight
- Blue colour
- Brass material connecting thread
- RoHS-compliant note on materials
- Steel material buckling protection
- Galvanised material buckling protection
- PA12-P material tubing
- -0.95BAR to 17.2BAR temperature-dependent operating pressure
- -30GC ambient temperature to 80GC ambient temperature
- Pneumatic connection male thread G1/4 , port 1
- Pneumatic connection male thread G1/4 , port 2
This product is an accessory for the following products:
