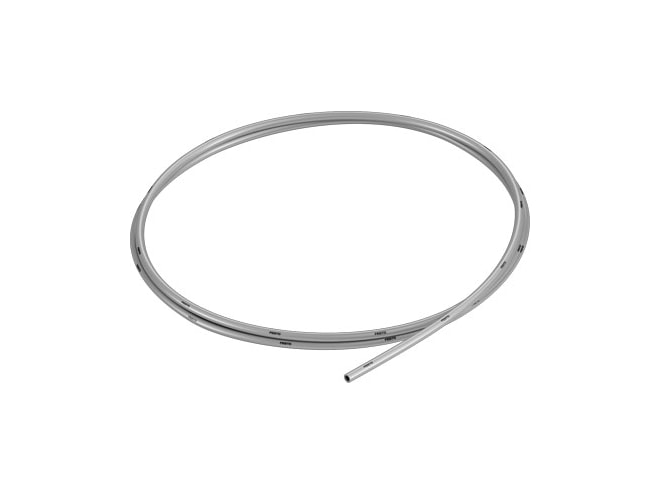

Festo PUN-H-3X0,5-SI Plastic Tubing

Features

• 3MM outside diameter
• 12MM flow-relevant bending radius
• 2.1MM inside diameter
• 6MM min. bending radius
• TPE-U Ether based instructions on use
• Suitable for energy chains tubing characteristics
• -0.095MPA operating pressure complete temperature range
• 0.6MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 6BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 87PSI operating pressure complete temperature range
• -0.095MPA temperature-dependent operating pressure
• 1MPA temperature-dependent operating pressure
• -0.95BAR temperature-dependent operating pressure
• 10BAR temperature-dependent operating pressure
• -13.775PSI temperature-dependent operating pressure
• 145PSI temperature-dependent operating pressure
• Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C note on operating pressure
• German Technical Control Board (TÜV) approval
• B 013277 0506 00 certificate issuing authority
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Water (liquid, ice-free) operating medium
• UL94 HB fire test material
• VDMA24364-B2-L lABS (PWIS) conformity
• Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• Element installed statically, no meaningful evaluation possible according to ISO 14644-1 cleanroom class
• See supplementary material information suitable for use with food
• 0.0042K/M product weight according to length
• Silver colour
• D 52 +/-3 shore hardness
• RoHS-compliant note on materials
• TPE-U(PU) material tubing
• -35GC ambient temperature to 60GC ambient temperature
• Pneumatic connection for push-in connector outside diameter of 3 mm
