Festo QB-10-32-UNF-3/16-I-U Push-in Fitting | Motion World

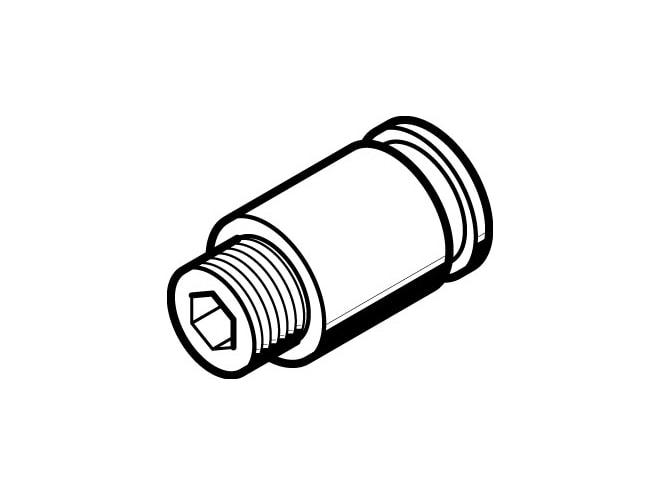

Festo QB-10-32-UNF-3/16-I-U Push-in Fitting

$26.10

Part Numbers

QB-10-32-UNF-3/16-I-U
572313

Highlights...

QB-10-32-UNF-3/16-I-U
By Festo
FREE Shipping on orders of $1,000 or more
2 in stock

Features

Standard size
2.388IN nominal size
Sealing ring type of seal on screwed plug
Optional mounting position
Straight design design
10 size of pack
Push-pull principle design
0.095MPA operating pressure complete temperature range
1MPA operating pressure complete temperature range
0.95BAR operating pressure complete temperature range
10BAR operating pressure complete temperature range
13.775PSI operating pressure complete temperature range
145PSI operating pressure complete temperature range
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364 zone III lABS (PWIS) conformity
0GC ambient temperature
60GC ambient temperature
1.5FLB max. tightening torque
5.812OZ product weight
Internal hex 3/32 type of mounting
32FA ambient temperature
140FA ambient temperature
Grey colour of release ring
RoHS-compliant note on materials
Brass, nickel-plated material housing
PBT material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
Pneumatic connection male thread 10-32 UNF-2A , port 1
Pneumatic connection for tubing outside diameter of 3/16" , port 2

Spec Sheets

Festo QB-10-32-UNF-3/16-I-U Push-in Fitting Datasheet (74 KB)

Other

Festo QB-10-32-UNF-3/16-I-U Push-in Fitting CAD Diagram (39 KB)

Festo PUN-H-3/16-BL-150-CB Plastic Tubing

Festo PUN-H-3/16-BL-150-CB Plastic Tubing

Standard tubing with 3/16 in O.D x wall thickness. 150 ft in Blue color.

Festo PEN-3/16-SW-150-CB Plastic Tubing

Festo PEN-3/16-SW-150-CB Plastic Tubing

Plastic tubing with high abrasion resistance and 3/16in outside diameter.

Festo PUN-H-3/16-SW-150-CB Plastic Tubing

Festo PUN-H-3/16-SW-150-CB Plastic Tubing

Standard tubing with 3/16 in O.D x wall thickness. 150 ft in Black color.
