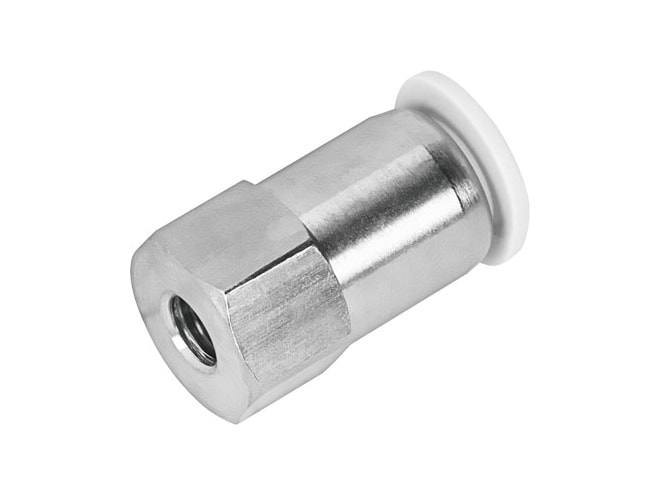

Festo QBMF-10-32-UNF-5/32-U Push-in Fitting

$34.90
Part Numbers
  • QBMF-10-32-UNF-5/32-U
  • 572283
Highlights...

Features

  • Mini size
  • 2.997IN nominal size
  • Sealing ring type of seal on screwed plug
  • Optional mounting position
  • Straight design design
  • 10 size of pack
  • Push-pull principle design
  • 0.095MPA operating pressure complete temperature range
  • 1MPA operating pressure complete temperature range
  • 0.95BAR operating pressure complete temperature range
  • 10BAR operating pressure complete temperature range
  • 13.775PSI operating pressure complete temperature range
  • 145PSI operating pressure complete temperature range
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • 0GC ambient temperature
  • 60GC ambient temperature
  • 1.5FLB max. tightening torque
  • 4.99OZ product weight
  • External hex 5/16 type of mounting
  • 32FA ambient temperature
  • 140FA ambient temperature
  • Grey colour of release ring
  • RoHS-compliant note on materials
  • Brass, nickel-plated material housing
  • PBT material housing
  • POM material release ring
  • NBR material tubing seal
  • High-alloy stainless steel material tubing clamp component
  • Pneumatic connection female thread 10-32 UNF-2B , port 1
  • Pneumatic connection for tubing outside diameter of 5/32" , port 2
