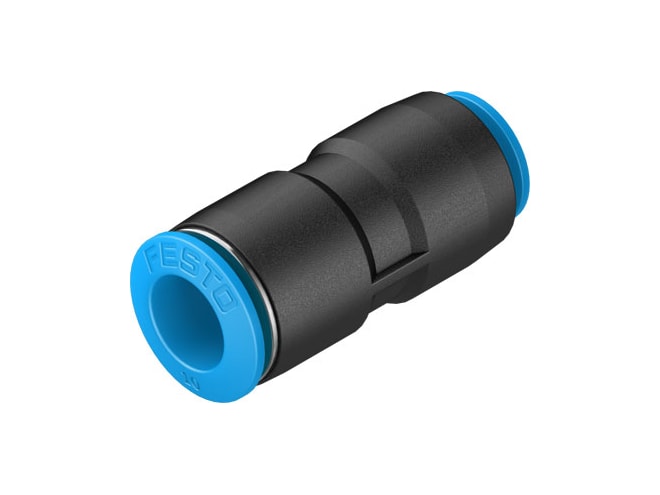

Festo QS-10-8 Push-in Connector

$51.50

Part Numbers

QS-10-8
153039

Highlights...

QS-10-8
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Standard size
6.5MM nominal size
Optional mounting position
Straight design design
10 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
0.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
6BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
87PSI operating pressure complete temperature range
-0.095MPA temperature-dependent operating pressure
1.4MPA temperature-dependent operating pressure
-0.95BAR temperature-dependent operating pressure
14BAR temperature-dependent operating pressure
-13.775PSI temperature-dependent operating pressure
203PSI temperature-dependent operating pressure
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
Class 4 according to ISO 14644-1 cleanroom class
14G product weight
Blue colour of release ring
RoHS-compliant note on materials
PBT material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
-10GC ambient temperature to 80GC ambient temperature
Pneumatic connection for tubing outer diameter of 10 mm , port 1
Pneumatic connection for tubing outside diameter of 8 mm , port 2
Water operating medium

Spec Sheets

Festo QS-10-8 Push-in Connector Datasheet (88 KB)

Other

Festo QS-10-8 Push-in Connector CAD Diagram (50 KB)

Tubes

Festo PUN-H-8X1,25-TBL Plastic Tubing

Festo PUN-H-8X1,25-TBL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Translucent blue color.

Festo PUN-H-8X1,25-BL Plastic Tubing

Festo PUN-H-8X1,25-BL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Blue color.

Festo PUN-H-8X1,25-NT Plastic Tubing

Festo PUN-H-8X1,25-NT Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Natural color.

Festo PUN-H-8X1,25-SW Plastic Tubing

Festo PUN-H-8X1,25-SW Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Black color.

General Accessories

Festo QSO Release Tool

Festo QSO Release Tool
