Festo QS-3/8-8-I Push-in Fitting | Motion World

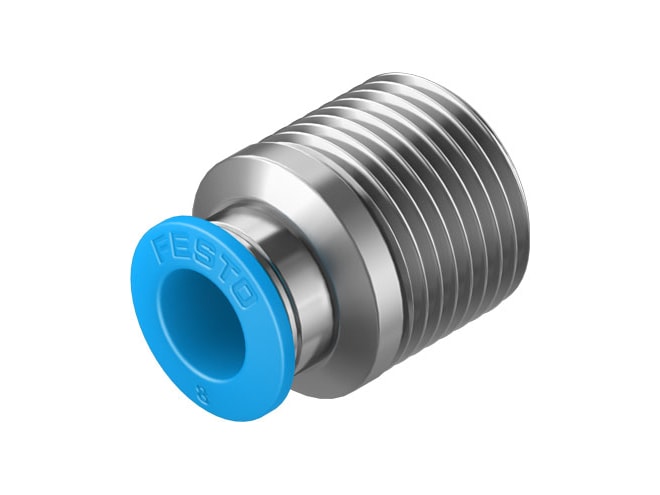

Festo QS-3/8-8-I Push-in Fitting

$37.30

Part Numbers

QS-3/8-8-I
153017

Highlights...

QS-3/8-8-I
By Festo
FREE Shipping on orders of $1,000 or more
5 in stock

Features

Standard size
6.3MM nominal size
Coating type of seal on screwed plug
Optional mounting position
Straight design design
10 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
0.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
6BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
87PSI operating pressure complete temperature range
-0.095MPA temperature-dependent operating pressure
1.4MPA temperature-dependent operating pressure
-0.95BAR temperature-dependent operating pressure
14BAR temperature-dependent operating pressure
-13.775PSI temperature-dependent operating pressure
203PSI temperature-dependent operating pressure
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
15.5NM nominal torque
± 20% tolerance for nominal tightening torque
19G product weight
Internal hexagon, size 6 mm type of mounting
Blue colour of release ring
RoHS-compliant note on materials
Brass, nickel-plated material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
-10GC ambient temperature to 80GC ambient temperature
Pneumatic connection male thread R3/8 , port 1
Pneumatic connection for tubing outside diameter of 8 mm , port 2
Water operating medium

Spec Sheets

Festo QS-3/8-8-I Push-in Fitting Datasheet (88 KB)

Other

Festo QS-3/8-8-I Push-in Fitting CAD Diagram (58 KB)

Tubes

Festo PUN-H-8X1,25-TBL Plastic Tubing

Festo PUN-H-8X1,25-TBL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Translucent blue color.

Festo PUN-H-8X1,25-BL Plastic Tubing

Festo PUN-H-8X1,25-BL Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Blue color.

Festo PUN-H-8X1,25-NT Plastic Tubing

Festo PUN-H-8X1,25-NT Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Natural color.

Festo PUN-H-8X1,25-SW Plastic Tubing

Festo PUN-H-8X1,25-SW Plastic Tubing

Standard tubing with 8x1.25 m O.D x wall thickness. Standard in Black color.

General Accessories

Festo QSO Release Tool

Festo QSO Release Tool
