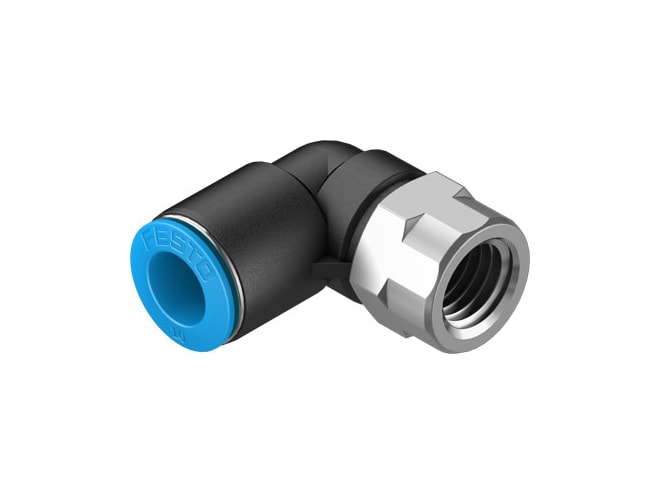

Festo QSLF-1/4-10-B Push-in L-fitting

Features

• Standard size
• 8MM nominal size
• Optional mounting position
• L-shape design
• 10 size of pack
• Push-pull principle design
• -0.095MPA operating pressure complete temperature range
• 0.6MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 6BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 87PSI operating pressure complete temperature range
• -0.095MPA temperature-dependent operating pressure
• 1.4MPA temperature-dependent operating pressure
• -0.95BAR temperature-dependent operating pressure
• 14BAR temperature-dependent operating pressure
• -13.775PSI temperature-dependent operating pressure
• 203PSI temperature-dependent operating pressure
• See certificate maritime classification
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible note on operating and pilot medium
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• Class 4 according to ISO 14644-1 cleanroom class
• 9NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 27G product weight
• External hexagon, size 17 mm type of mounting
• Blue colour of release ring
• Nickel-plated brass material screwed plug
• RoHS-compliant note on materials
• PBT material housing
• POM material release ring
• NBR material tubing seal
• High-alloy stainless steel material tubing clamp component
• -10GC ambient temperature to 80GC ambient temperature
• Pneumatic connection female thread G1/4 , port 1
• Pneumatic connection for tubing outside diameter of 10 mm , port 2
• Water operating medium
