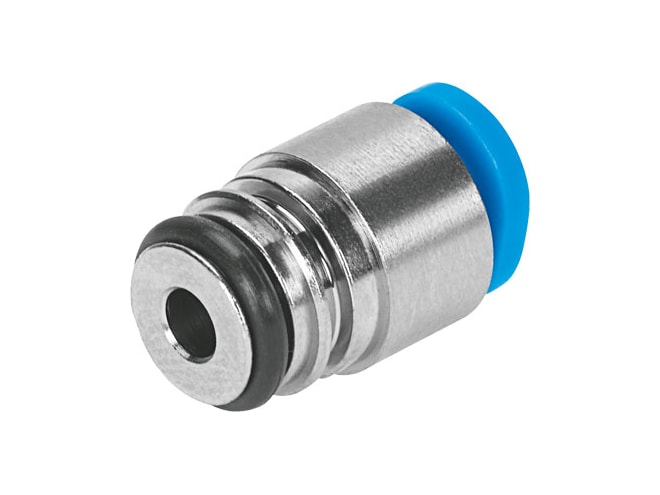

Festo QSP10 Series Cartridge

Push-pull design principle.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • -0.95 to 10bar operating pressure range
  • Corrosion resistance class CRC 1
  • Design options:
    • Straight
    • L-shape
    • L-shape, long
  • Black, grey, or standard colors
  • Pneumatic connection sizes:
    • Pneu connection 1: 10 to 20mm
    • Pneu connection 2: 1/8 to 1/2in, 4 to 12mm
  • POM releasing ring (blue color)
  • High-alloy stainless steel tube retaining claw
  • NBR tubing seal
  • Materials conform to RoHS

The Festo QSP10 Series Cartridge supports any mounting position, and includes an O-ring type seal on the threaded plug. The operating medium is compressed air in accordance with ISO 8573-1:2010 [7:-:-]. Operation with a lubricated medium is possible.
