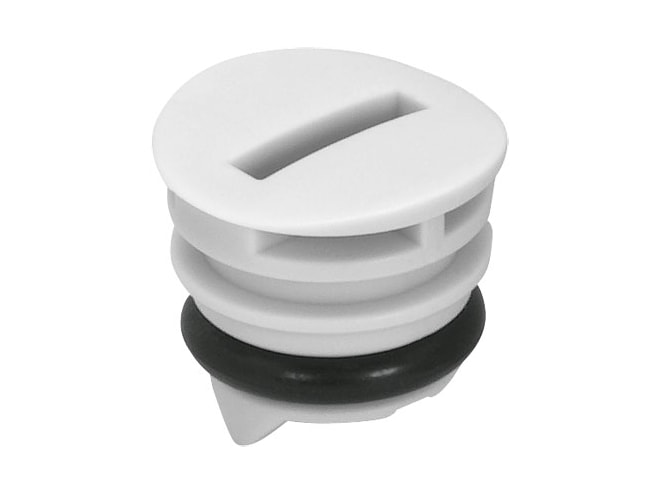

Festo QSPC10 Blanking Plug

Push in cartridge with Straight design for 10mm (10 pack, no corrosion stress) to N/A connection. View other configurations.

$23.80
Part Numbers
  • QSPC10
  • 562243
Highlights...

Features

  • Standard size
  • Straight design design
  • 10 size of pack
  • 0MPA operating pressure complete temperature range
  • 0.8MPA operating pressure complete temperature range
  • 0BAR operating pressure complete temperature range
  • 8BAR operating pressure complete temperature range
  • 0PSI operating pressure complete temperature range
  • 116PSI operating pressure complete temperature range
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0.4G product weight
  • Mounting pin type of mounting
  • RoHS-compliant note on materials
  • POM material blanking plug
  • NBR material o-ring
  • -5GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection cartridge 10 mm , port 1
