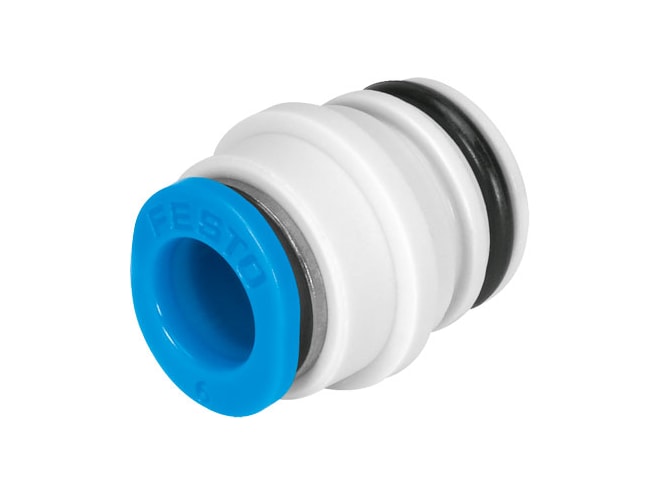

Festo QSPKG14-6 Cartridge

Push in cartridge with Straight design for 14mm to 6mm connection. View other configurations.

$23.50
Part Numbers
  • QSPKG14-6
  • 132930
Highlights...

Features

  • Mini size
  • 3.5MM nominal size
  • O-ring type of seal on screwed plug
  • Optional mounting position
  • Straight design design
  • 10 size of pack
  • Push-pull principle design
  • -0.095MPA operating pressure complete temperature range
  • 1MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 10BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 145PSI operating pressure complete temperature range
  • See certificate maritime classification
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 2.4G product weight
  • Mounting pin type of mounting
  • Blue colour of release ring
  • RoHS-compliant note on materials
  • PA-reinforced material housing
  • POM material release ring
  • NBR material tubing seal
  • High-alloy stainless steel material tubing clamp component
  • -5GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection cartridge 14 mm , port 1
  • Pneumatic connection for tubing outside diameter of 6 mm , port 2
