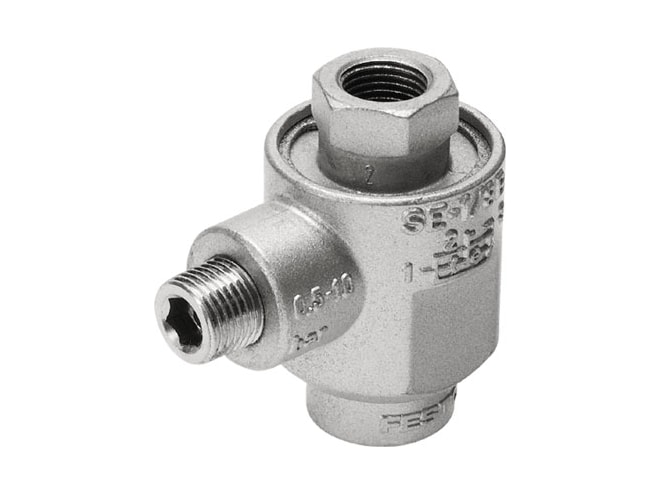

Festo SE Series Quick Exhaust Valve

Screw-in exhaust air control with balanced noise emission.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 300 to 4,560l/min flow rate
  • 0.2 to 10bar operating pressure
  • 5 to 19mm nominal width
  • ISO or NPT connection
  • Screw-in or through-hole mounting
  • Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]
  • Any mounting position
  • Stop valve, piloted
  • Available with or without muffler

The Festo SE Series Quick Exhaust Valve can be used to achieve higher piston speeds during the return stroke of single-acting and double-acting cylinders.

Compressed air flows from the control valve and via the quick exhaust valve to the cylinder. This closes exhaust port 3. If the pressure at 1 drops, exhausting from 2 to 3. To ensure quick and complete exhausting, the valve must be mounted directly on the cylinder's air port.

The quick exhaust valve SEU has a silencer to reduce the exhaust noise.

Part Number Price Available
SEU-1/8
Show Configuration
$61.20 13 in stock
SEU-1/2-NPT
Show Configuration
$154.90 2 in stock
SEU-1/8-NPT
Show Configuration
$61.20 2 in stock
SEU-3/8-NPT
Show Configuration
$114.15 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
