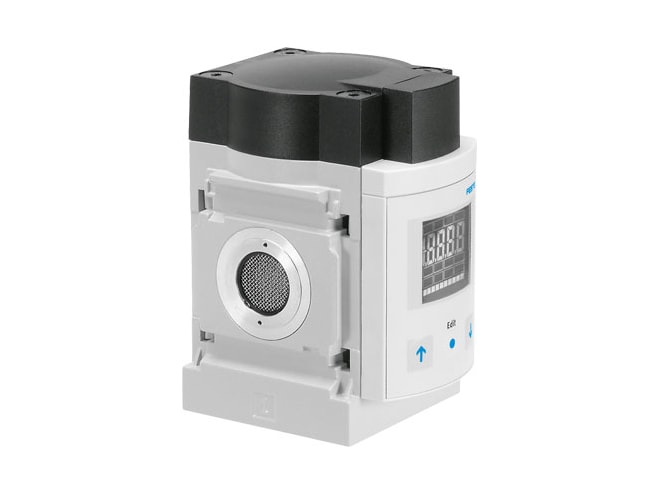

Festo SFAM Series Flow Sensor

Reliable measurement of high flow rates; IO-Link communication with efficient remote parameterization and replication function.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 62 or 90mm size
  • 1,000 to 15,000l/min max. flow measuring range
  • Unidirectional flow rate input, from left or right
  • 0 to 16bar operating pressure
  • 6bar nominal pressure
  • 100mA max. output current
  • 1.5V max. voltage drop
  • Operating medium:
    • Compressed air to ISO 8573-1:2010 [7:4:4]
    • Nitrogen
  • Thermal measuring principle
  • Normally closed or normally open contact switching element function, adjustable

The Festo SFAM Series Flow Sensor can operate either as a standalone unit or can be easily combined with the MS series service units. The sensor provides:

  • Absolute flow rate information with threshold values and convenient switching point adjustment via a display
  • Cumulative air consumption measurement
  • Patented - adjustable consumption-based switching pulse for cumulative air consumption measurement via the switching output

The sensor covers a large measuring range with a specified accuracy thanks to its high dynamic response of 1:100. The sensor can provide precise information even when flow conditions are fluctuating and unreliable.
