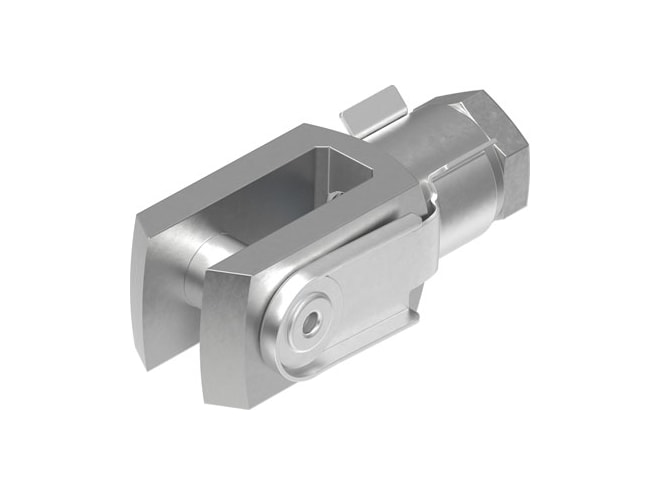

Festo SG-UNF5/16"-24-B Rod Clevis
- SG-UNF5/16"-24-B
- 546574
- SG-UNF5/16"-24-B
- By Festo
- FREE Shipping on orders of $1,000 or more
- FREE Lifetime Tech Support
Overview
Features
- UNF5/16-24 size
- DIN 71752 based on standard
- ISO 8140 based on standard
- 1 - Low corrosion stress corrosion resistance class cRC
- VDMA24364-B2-L lABS (PWIS) conformity
- 54.886OZ product weight
- RoHS-compliant note on materials
- Steel material bolt
- Galvanised material bolt
- Steel material clevis
- Galvanised material clevis
- Steel material nut
- Galvanised material nut
- -40GC ambient temperature to 150GC ambient temperature
