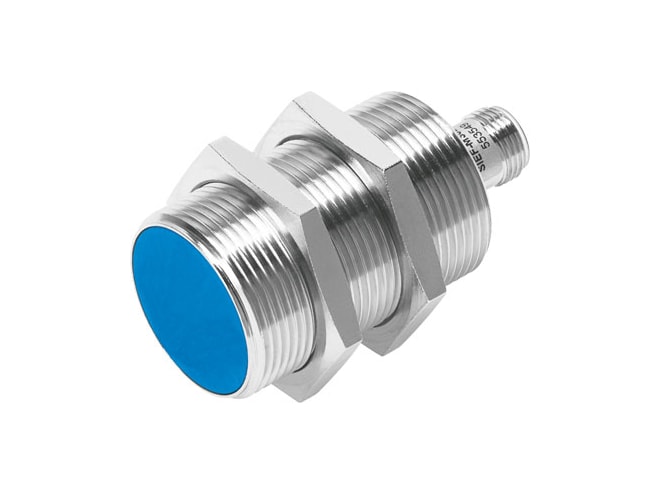

Festo SIEF-M30B-PS-S-L Proximity Sensor
Inductive proximity sensor with Round, M30x1.5 design and PNP switching. View other configurations.
$127.34
Part Numbers
- SIEF-M30B-PS-S-L
- 553549
Highlights...
- SIEF-M30B-PS-S-L
- By Festo
- FREE Shipping on orders of $1,000 or more
- FREE Lifetime Tech Support
Overview
Features
- Round design
- EN 60947-5-2 conforms to standard
- 991701 symbol
- RCM trademark approval
- C UL us listed (OL) approval
- To EU EMC Directive cE mark (see declaration of conformity)
- RoHS-compliant note on materials
- 10MM rated operating distance
- 0.55MM repetition accuracy
- PNP switching output
- N/O contact switching element function
- 2000HZ max. switching frequency dC
- 200MA max. output current
- Pulsed short circuit current rating
- 10V operational voltage range dC
- 30V operational voltage range dC
- For all electrical connections reverse polarity protection
- 3-pin electrical connection
- M12x1 electrical connection
- Plugs electrical connection
- Brass material connector housing
- Chrome-plated material connector housing
- M30 size
- Flush mounting type
- 100G product weight
- Brass material housing
- Chrome-plated material housing
- Yellow LED switching status indication
- IP68 degree of protection
- Magnetic direct and alternating field immunity to magnetic fields
- 0.8KV immunity to surge
- 2 - Moderate corrosion stress corrosion resistance class cRC
- VDMA24364-B2-L lABS (PWIS) conformity
- 3 pollution degree
- -30GC ambient temperature to 85GC ambient temperature
